| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Voltage-Rated | Capacitance | Capacitance Tolerance | Temperature Characteristic/Dielectric | Maximum Temperature | Package / Case | Vendor | Mounting Type | Lead Spacing |
| | | | | | | | | | | | | | | | | |
 | 0158-0257-6 | H103ZZFE051BF-T | 227 | 0.80 |  | PB-Free | RoHS | Ceramic Disc Cap 0.01μF/50Vdc,+80%/-20%, Z5V | 50V | 10nF | +80%/-20% | Z5V | 85°C | RADIAL | AEC | Through Hole | 2.5mm |

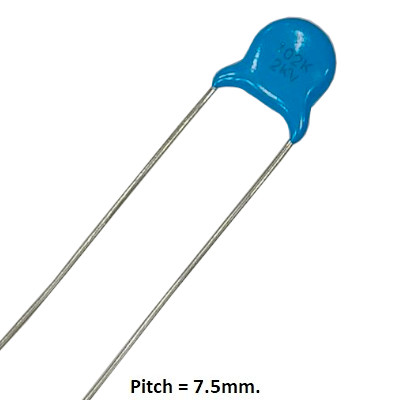

 | 0158-0259-2 | H102KYBS074L | 1,930 | 2.38 | | PB-Free | RoHS | Ceramic Disc Cap 1000pF/2KVdc ±10% Y5P Pitch 7.5mm | 2000V | 1nF | ±10% | Y5P | 85°C | RADIAL | AEC | Through Hole | 7.5mm |
 | 0158-0260-9 | H103MZES155QF | 1 | 8.75 | | PB-Free | | Ceramic Disc Cap 10nF/2KVdc, ±20%, CLASS II | 2000V | 10nF | ±20% | Z5U | 85°C | RADIAL | AEC | Through Hole | 10mm |
| 0158-0269-6 | H221KYAF041LF | 41 | 0.53 | | | | Ceramic Disc Cap 220pF/100V ±10%, Y5E Pitch 2.5mm | 100V | 220pF | ±10% | Y5E | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
 | 0158-0270-3 | S104ZYFE072B | 68 | 1.10 | | PB-Free | RoHS | Ceramic Disc Cap 0.1μF/50Vdc ,+80%/-20% Dia 7.5mm | 50V | 0.1μF | +80%/-20% | Y5V | 85°C | RADIAL | AEC | Through Hole | 5mm |
| 0158-0271-6 | T220KUJE051LF | 53,433 | 0.48 | | PB-Free | RoHS | Ceramic Disc Capacitor Class I,Capacitance 22pF Working Voltage 50V,Tolerance ±10%, Size <5.5mm,Lead Spacing 2.5mm,Bulk straight | 50V | 22pF | ±10% | N750 | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
 | 0158-0272-9 | R101JCF21L | 5,588 | 1.90 | | PB-Free | RoHS | Multilayer Ceramic Cap 100pF/50Vdc ±5%,NPO Radial, Straight Lead, Lead Spacing 2.54mm | 50V | 100pF | ±5% | C0G (NP0) | 85°C | RADIAL | AEC | Through Hole | 2.54mm |
| 0158-0275-1 | R101JCF2TL | 80 | 2.40 | | PB-Free | | Multilayer Ceramic Cap 100pF/50Vdc ±5%,NPO Radial, Straight Lead, Lead Spacing 2.54mm | 50V | 100pF | ±5% | C0G (NP0) | 85°C | RADIAL | AEC | Through Hole | 2.54mm |
| 0158-0276-2 | H102KYBE051LF | 7,530 | 0.55 | | | RoHS | Ceramic Disc Cap 1nF/50Vdc,±10%,Y5P | 50V | 1nF | ±10% | Y5P | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
| 0158-0279-8 | R300JCF21L | 64,040 | 1.71 | | PB-Free | RoHS | Multilayer Ceramic Cap 30pF/50VDC ±5%,NPO(C0G) Radial, Straight Lead, Lead Spacing 2.54mm | 50V | 30pF | ±5% | C0G (NP0) | 85°C | RADIAL | AEC | Through Hole | 2.54mm |
| 0158-0280-3 | T151KSLE052LF | 8,839 | 1.23 | | PB-Free | RoHS | Ceramic Disc Cap 150pF/50Vdc, ±10%,SL Straight Lead,Pitch 5.0mm | 50V | 150pF | ±10% | SL | 85°C | RADIAL | AEC | Through Hole | 5mm |
| 0158-0281-5 | T470KSLE051LF | 4,080 | 0.53 | | PB-Free | RoHS | Ceramic Disc Cap 47pF/50Vdc ±10%, SL | 50V | 47pF | ±10% | SL | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
| 0158-0285-3 | T200KUJE041LF | 1 | 0.50 | | PB-Free | RoHS | Ceramic Disc Cap 20pF/50Vdc,±10% | 50V | 20pF | ±10% | N750 | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
| 0158-0286-5 | S224ZYFE082LF | 3 | 2.15 | | PB-Free | RoHS | Ceramic Disc Cap 0.22μF/50Vdc, +80%/-20%,Y5V | 50V | 0.22μF | +80%/-20% | Y5V | 85°C | RADIAL | AEC | Through Hole | 5mm |
| 0158-0289-1 | H103ZZFF062LF | 2,070 | 1.08 | | PB-Free | RoHS | Ceramic Disc Cap 10nF/100VDC,+80%/-20%,Z5V | 100V | 10nF | +80%/-20% | Z5V | 85°C | RADIAL | AEC | Through Hole | 5mm |
