| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Current | Inductance | Maximum Voltage | Operating Frequency | Series | Connection Style | Phase | Feature |
| | | | | | | | | | | | | | | | | |
 | 0285-0335-3 | FN351-80-34 | 2 | 7,993.00 |  | PB-Free | RoHS | General Purpose EMC Filter, 3-Phase, Rated Current 80A, Operating Voltage 440VAC/250VAC, Operating Frequency DC to 60Hz | SCHAFFNER | 80A | - | 440VAC/250VAC | DC to 60Hz | FN351 | Terminal / 34 | 3 Phase | General Purpose |
 | 0285-0340-6 | FN2030M-20-06 | 862 | 584.80 | | PB-Free | RoHS | General Purpose AC/DC EMI Filter, 1-Phase, Rated Current 20A, Rated Voltage 250VAC/250VDC, Operating Frequency DC to 400Hz | SCHAFFNER | 20A | 4mH | 250VAC/250VDC | DC to 400Hz | FN2030 | Terminal / 06 | 1 Phase | General Purpose |

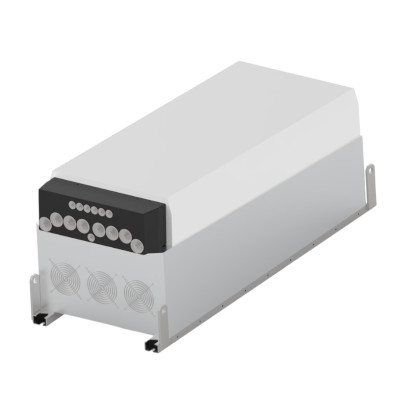

 | 0285-0344-4 | FN3440-160-118-E2FAJXX | 0 | 150,020.00 | | PB-Free | RoHS | Passive Harmonic filters For rectifiers without DC-link choke, 160kW, IP20, Filters contain fan, auxiliary power supply and trap disconnect jumper | SCHAFFNER | 240A | - | 415VAC | 50Hz | FN3440 | Terminal / 118 | 3 Phase | Full Performance Passive Harmonic Filter |
| 0285-0351-1 | FN3440-132-118-E2FAJXX | 0 | 146,250.00 | | PB-Free | RoHS | Passive Harmonic filters For rectifiers without DC-link choke, 160kW, IP20, Filters contain fan, auxiliary power supply and trap disconnect jumper | SCHAFFNER | 197A | - | 415VAC | 50Hz | FN3440 | Terminal / 118 | 3 Phase | Full Performance Passive Harmonic Filter |
 | 0285-0359-7 | FN3288-63-53-C26-R65 | 34 | 6,519.00 | | PB-Free | RoHS | Smallest Book-Style EMC/RFI Filter for Inverter and Power Drive Systems, 3-Phase, 63A, 530VAC/ 305VAC, Leakage Current 2.6mA, DC to 60Hz | SCHAFFNER | 63A | - | 530VAC/305VAC | DC to 60Hz | FN3288 | Terminal / 53 | 3 Phase | Inverter and Power Drive Systems |
 | 0285-0360-2 | FN3270H-10-44 | 18 | 1,644.00 | | PB-Free | RoHS | Compact EMC/RFI Filter for Industrial Motor Drive Applications, 3-Phase, Rated Current 10A, Voltage 520VAC/300VAC, Operating Frequency DC to 60Hz | SCHAFFNER | 10A | - | 520VAC/300VAC | DC to 60Hz | FN3270 | Terminal / 44 | 3 Phase | Industrial Motor Drive |
 | 0285-0361-4 | FN3288-10-44-C26-R65 | 3 | 4,442.00 | | PB-Free | RoHS | Smallest Book-Style EMC/RFI Filter for Inverter and Power Drive Systems, 3-Phase, 10A, 530VAC/ 305VAC, Leakage Current 2.5mA, DC to 60Hz | SCHAFFNER | 10A | - | 530VAC/305VAC | DC to 60Hz | FN3288 | Terminal / 44 | 3 Phase | Inverter and Power Drive Systems |
 | 0285-0362-6 | FN3288-16-44-C26-R65 | 7 | 4,810.00 | | PB-Free | RoHS | Smallest Book-Style EMC/RFI Filter for Inverter and Power Drive Systems, 3-Phase, 16A, 530VAC/ 305VAC, Leakage Current 2.5mA, DC to 60Hz | SCHAFFNER | 16A | - | 530VAC/305VAC | DC to 60Hz | FN3288 | Terminal / 44 | 3 Phase | Inverter and Power Drive Systems |
| 0285-0363-8 | FN3288-50-53-C26-R65 | 9 | 5,855.00 | | PB-Free | RoHS | Smallest Book-Style EMC/RFI Filter for Inverter and Power Drive Systems, 3-Phase, 50A, 530VAC/ 305VAC, Leakage Current 2.6mA, DC to 60Hz | SCHAFFNER | 50A | - | 530VAC/305VAC | DC to 60Hz | FN3288 | Terminal / 53 | 3 Phase | Inverter and Power Drive Systems |
 | 0285-0364-1 | FN3288-80-34-C26-R65 | 0 | 11,310.00 | | PB-Free | RoHS | Smallest Book-Style EMC/RFI Filter for Inverter and Power Drive Systems, 3-Phase, 80A, 530VAC/ 305VAC, Leakage Current 2.7mA, DC to 60Hz | SCHAFFNER | 80A | - | 530VAC/305VAC | DC to 60Hz | FN3288 | Terminal / 34 | 3 Phase | Inverter and Power Drive Systems |
 | 0285-0368-8 | FN351H-50-33 | 27 | 3,230.00 | | PB-Free | RoHS | General Purpose EMC Filter, 3-Phase, Rated Current 50A, Operating Voltage 520VAC/300VAC, Operating Frequency DC to 60Hz | SCHAFFNER | 50A | - | 520VAC/300VAC | DC to 60Hz | FN351 | Terminal / 33 | 3 Phase | General Purpose |
 | 0285-0370-5 | FN9262SB-6-06 | 0 | 327.40 | | PB-Free | RoHS | High Performance Power Entry Module 6A, 3mH, Integrated Dual Fuse Holder, Medical Version (without Y-Capacitor), Snap-In | SCHAFFNER | 6A | 3mH | 250VAC | DC to 400Hz | FN9262 | Terminal / 06 | 1 Phase | High Performance Power Entry Module with Fuses |
 | 0285-0410-1 | FN9222R-16-06 | 28 | 451.50 | | PB-Free | RoHS | General Performance IEC Inlet Filter 16A, 0.54mH, Built In Bleed Resistor, Standard IEC Inlet Type C20 | SCHAFFNER | 16A | 0.54mH | 250VAC | DC to 400Hz | FN9222 | Terminal / 06 | 1 Phase | General Performance IEC Inlet Filter |
 | 0285-0413-7 | FN2090-6-06 | 4 | 1,025.00 | | PB-Free | RoHS | Multi-Stage AC/DC EMI Filter with Excellent Attenuation Performance, Single-Phase, Rated Current 6A, 250VAC/250VDC, DC to 400Hz | SCHAFFNER | 6A | 8mH | 250VAC/250VDC | DC to 400Hz | FN2090 | Terminal / 06 | 1 Phase | Multi-Stage Performance Filter |
 | 0285-0414-9 | FN9255-15-06 | 60 | 653.10 | | PB-Free | RoHS | High Performance Dual-Stage IEC C14 Inlet Filter 15A, 0.13mH/8μH | SCHAFFNER | 15A | 0.13mH/8μH | 250VAC | DC to 400Hz | FN9255 | Terminal / 06 | 1 Phase | High Performance IEC Inlet Filter |
