| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Current | Inductance | Maximum Voltage | Operating Frequency | Series | Connection Style | Phase | Feature |
| | | | | | | | | | | | | | | | | |
 | 0285-0254-3 | FN2020-16-06 | 0 | 365.00 |  | PB-Free | RoHS | Single-Stage AC/DC EMI Filter 16A Tab Terminal-06 Style Chassis Mount | SCHAFFNER | 16A | 0.65mH | 250VAC/250VDC | DC to 400Hz | FN2020 | Terminal / 06 | 1 Phase | General Purpose |

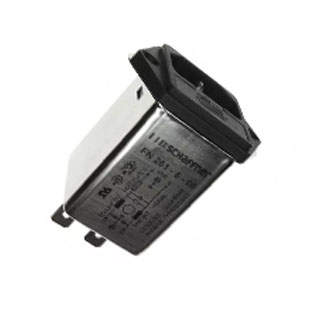

 | 0285-0259-3 | FN261-6-06 | 16 | 265.20 | | PB-Free | RoHS | General Purpose Power Entry Module Integrated Single Fuse Holder, Rate Current 6A, Operating Frequency dc to 400Hz | SCHAFFNER | 6A | 0.3mH | 250VAC | DC to 400Hz | FN9260 | Terminal / 06 | 1 Phase | General Purpose Power Entry Module with Fuses |

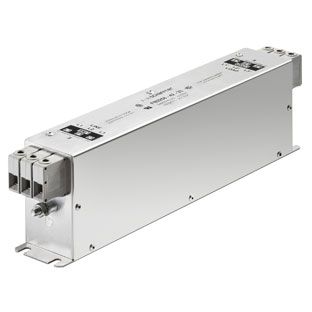

 | 0285-0265-8 | FN3258-16-44 | 49 | 2,366.00 | | PB-Free | RoHS | Ultra-compact EMC/RFI Filter 3-Phase,16A for Motor Drives Applications | SCHAFFNER | 16A | - | 480VAC/277VAC | DC to 60Hz | FN3258 | Terminal / 44 | 3 Phase | Ultra Compact 3 Phase |

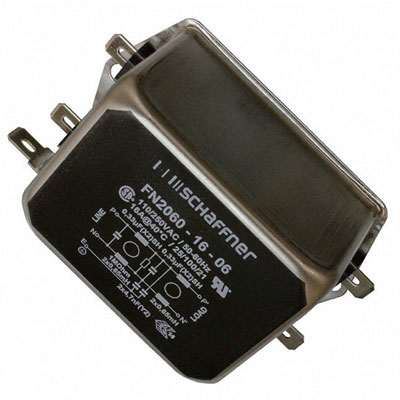

 | 0285-0271-3 | FN2060-16-06 | 0 | 572.20 | | PB-Free | RoHS | Multi-Stage General Purpose EMI Filter 250VAC/16A,Chassis Mount | SCHAFFNER | 16A | 0.65mH | 110VAC/250VAC | DC to 400Hz | FN2060 | Terminal / 06 | 1 Phase | General Purpose |

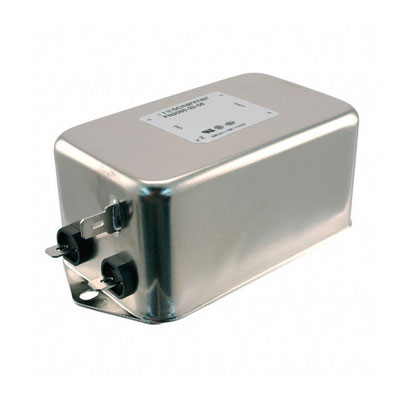

 | 0285-0272-5 | FN2060-20-06 | 3 | 762.90 | | PB-Free | RoHS | Multi-Stage General Purpose EMI Filter 250VAC/20A,Chassis Mount | SCHAFFNER | 20A | 0.6mH | 110VAC/250VAC | DC to 400Hz | FN2060 | Terminal / 06 | 1 Phase | General Purpose |
 | 0285-0291-9 | FN3270H-50-34 | 8 | 4,275.00 | | PB-Free | RoHS | EMC/RFI Filter for Industrial Motor Drive Application,3-Phase,55A,DC to 60Hz | SCHAFFNER | 50A | - | 520VAC/300VAC | DC to 60Hz | FN3270 | Terminal / 34 | 3 Phase | Industrial Motor Drive |
 | 0285-0296-9 | FN2010-30-08 | 0 | 564.20 | | PB-Free | RoHS | Single-Stage AC/DC EMI Filter 30A, Tab Terminal-08 Style Chassis Mount | SCHAFFNER | 30A | 0.7mH | 250VAC/250VDC | DC to 400Hz | FN2010 | Screw / 08 | 1 Phase | General Purpose |

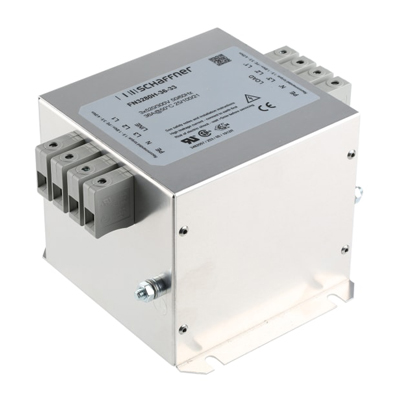

 | 0285-0302-8 | FN3280H-36-33 | 9 | 3,635.00 | | PB-Free | RoHS | High-End Line Filter for Machinery/Equipment, 3-Phase Filters with Neutral, Rated Current 36A, Operating Voltage 520/300VAC, DC to 60Hz | SCHAFFNER | 36A | - | 520VAC/300VAC | DC to 60Hz | FN3280 | Terminal / 33 | 3 Phase | Machinery and Equipment |
 | 0285-0305-4 | FN355-20-03 | 0 | 919.50 | | PB-Free | RoHS | 3-Phase Low Leakage Current EMC/EMI Filter, Operating Frequency DC ~ 400Hz,Rated Currents 20A, Max. Continuous Operating Voltage 440/250 VAC | SCHAFFNER | 20A | - | 440VAC/250VAC | DC to 400Hz | FN355 | Terminal / 03 | 3 Phase | Ultra Compact Low Leakage Current EMC,EMI filter |

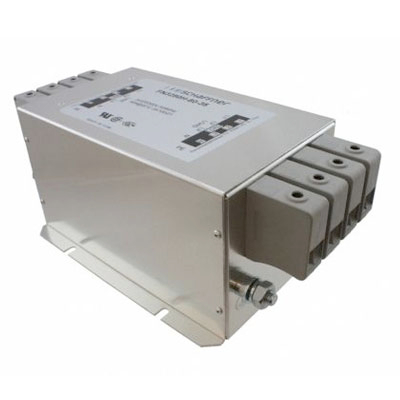

 | 0285-0308-1 | FN3280H-80-35 | 4 | 8,979.00 | | PB-Free | RoHS | High-End Line Filter for Machinery/Equipment, 3-Phase Filters with Neutral, Rated Current 80A, Operating Voltage 520/300VAC, DC to 60Hz | SCHAFFNER | 80A | - | 520VAC/300VAC | DC to 60Hz | FN3280 | Terminal / 35 | 3 Phase | Machinery and Equipment |

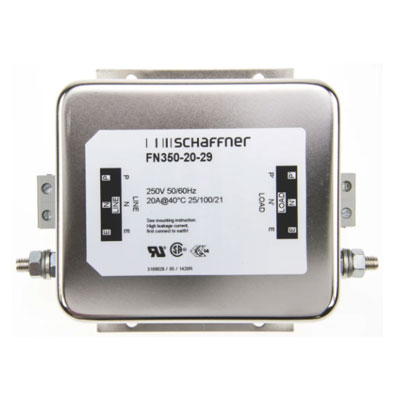

 | 0285-0309-2 | FN350-20-29 | 0 | 1,534.00 | | PB-Free | RoHS | Compact EMC/RFI Filter for 1-Phase Motor Drives, 20A/250VAC, Operating Frequency DC to 400Hz, Terminal Block, Screw M6 | SCHAFFNER | 20A | - | 250VAC | DC to 400Hz | FN350 | Terminal / 29 | 1 Phase | Motor Drives |

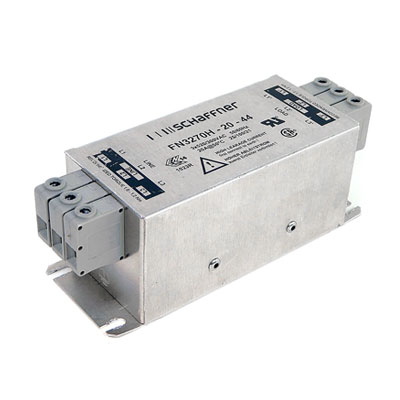

 | 0285-0310-7 | FN3270H-20-44 | 14 | 1,830.00 | | PB-Free | RoHS | Compact EMC/RFI Filter for Industrial Motor Drive Applications, 3-Phase Filters, DC to 60Hz, Terminal Block, Screw M4 | SCHAFFNER | 20A | - | 520VAC/300VAC | DC to 60Hz | FN3270 | Terminal / 44 | 3 Phase | Industrial Motor Drive |
 | 0285-0320-1 | FN3258-130-35 | 1 | 11,840.00 | | PB-Free | RoHS | Ultra-Compact EMC/RFI 3-Phase Filter for Motor Drives Applications, 130A | SCHAFFNER | 130A | - | 480VAC/277VAC | DC to 60Hz | FN3258 | Terminal / 35 | 3 Phase | Ultra Compact 3 Phase |
 | 0285-0326-2 | FN3256H-16-29 | 17 | 2,435.00 | | PB-Free | RoHS | Compact Line Filter for Industrial Machinery/ Equipment, 3-Phase with Neutral, Rated Current 16A, DC to 60Hz | SCHAFFNER | 16A | - | 520VAC/300VAC | DC to 60Hz | FN3256 | Terminal / 29 | 3 Phase | Machinery and Equipment |
 | 0285-0327-4 | FN2090-8-06 | 57 | 644.80 | | PB-Free | RoHS | Multi-Stage AC/DC EMI Filter with Excellent Attenuation Performance, DC to 400Hz, 250VAC/ 250VDC, Terminal-06 Style, Chassis Mount | SCHAFFNER | 8A | 8mH | 250VAC/250VDC | DC to 400Hz | FN2090 | Terminal / 06 | 1 Phase | Multi-Stage Performance Filter |
