| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Capacitance | Tolerance | Voltage-Rated | Endurance (Hours) | Series | Lead Spacing | Diameter x Height(mm) |
| | | | | | | | | | | | | | | | |
 | 0289-0126-6 | UWX1C470MCL1GB | 104 | 3.31 |  | PB-Free | | E-Cap WX Series 47μF/16Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 47μF | ±20% | 16V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 2.2mm | 6.3x5.5 |
| 0289-0127-9 | UWX1C101MCL1GB | 39 | 4.86 | | PB-Free | RoHS | E-Cap WX Series 100μF/16Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 100μF | ±20% | 16V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 2.2mm | 6.3x5.5 |
 | 0289-0128-2 | UWX1E4R7MCL1GB | 2,698 | 2.49 | | PB-Free | RoHS | E-Cap WX Series 4.7μF/25Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 4.7μF | ±20% | 25V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |

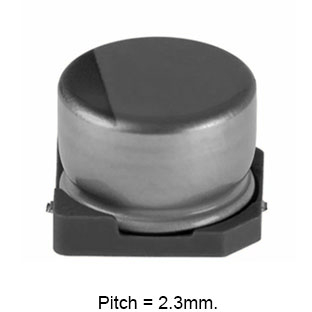

 | 0289-0133-1 | UWX1E101MCL1GB | 6,619 | 4.82 | | PB-Free | | E-Cap WX Series 100μF/25Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 100μF | ±20% | 25V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 2.3mm | 8x5.5 |

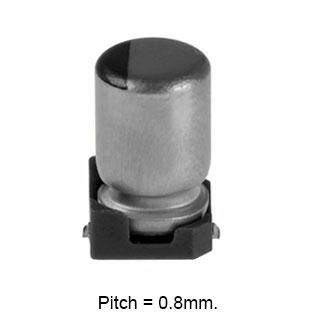

 | 0289-0134-4 | UWX1V2R2MCL2GB | 1,133 | 2.42 | | PB-Free | RoHS | E-Cap WX Series 2.2μF/35Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 2.2μF | ±20% | 35V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 0.8mm | 3x5.5 |
| 0289-0135-7 | UWX1V3R3MCL2GB | 3,531 | 1.02 | | PB-Free | | E-Cap WX Series 3.3μF/35Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 3.3μF | ±20% | 35V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 0.8mm | 3x5.5 |
| 0289-0136-0 | UWX1V4R7MCL1GB | 4,520 | 2.51 | | PB-Free | RoHS | E-Cap WX Series 4.7μF/35Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 4.7μF | ±20% | 35V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |

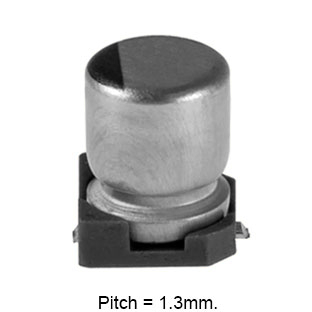

 | 0289-0137-3 | UWX1V100MCL1GB | 6,991 | 2.71 | | PB-Free | RoHS | E-Cap WX Series 10μF/35Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 10μF | ±20% | 35V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.3mm | 5x5.5 |
| 0289-0138-6 | UWX1V220MCL1GB | 1 | 2.23 | | PB-Free | | E-Cap WX Series 22μF/35Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 22μF | ±20% | 35V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 2.2mm | 6.3x5.5 |
| 0289-0140-6 | UWX1V470MCL1GB | 774 | 4.10 | | PB-Free | RoHS | E-Cap WX Series 47μF/35Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 47μF | ±20% | 35V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 2.3mm | 8x5.5 |
| 0289-0141-9 | UWX1H0R1MCL1GB | 1 | 2.27 | | PB-Free | | E-Cap WX Series 0.1μF/50Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 0.1μF | ±20% | 50V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |
| 0289-0142-2 | UWX1HR22MCL1GB | 1,805 | 1.63 | | PB-Free | RoHS | E-Cap WX Series 0.22μF/50Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 0.22μF | ±20% | 50V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |
| 0289-0143-5 | UWX1HR33MCL1GB | 654 | 2.28 | | PB-Free | RoHS | E-Cap WX Series 0.33μF/50Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 0.33μF | ±20% | 50V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |
| 0289-0145-1 | UWX1H010MCL1GB | 2,570 | 2.48 | | PB-Free | RoHS | E-Cap WX Series 1μF/50Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 1μF | ±20% | 50V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |
| 0289-0146-4 | UWX1H2R2MCL1GB | 121 | 2.65 | | PB-Free | RoHS | E-Cap WX Series 2.2μF/50Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 2.2μF | ±20% | 50V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |
