| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Capacitance | Tolerance | Voltage-Rated | Endurance (Hours) | Series | Lead Spacing | Diameter x Height(mm) |
| | | | | | | | | | | | | | | | |

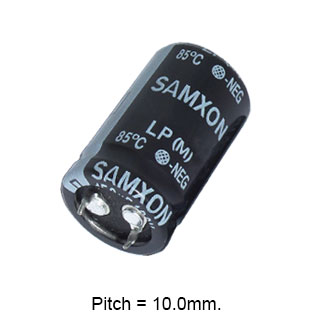

 | 0566-0332-3 | ELP687M2DN35SZSMP | 752 | 37.15 |  | PB-Free | RoHS | E-CAP LP Series 680μF/200Volt -40°C to +85°C,±20%,2000hrs. Snap-In Type,Standard | SAMXON | 680μF | ±20% | 200V | 2000 | LP,Lug/Snap-in,Standard 85°C,2000hrs | 10.0mm | 22x35 |
 | 0566-0335-9 | EGT226M1HD11RRS0P | 6,349 | 0.89 | | PB-Free | RoHS | Aluminum Electrolytic Capacitor, GT Series 22μF/50Volt, -40°C to 105°C, ±20%, 5000hrs | SAMXON | 22μF | ±20% | 50V | 5000 | GT,Low impedance 105°C,4000-10000hrs | 2.0mm | 5x11 |
 | 0566-0337-3 | EKM227M1HG1BRRSHP | 20,148 | 2.27 | | PB-Free | RoHS | E-Cap KM Series 220μF/50Vdc -40°C to +105°C,±20% ,2000hrs. Miniature Sized | SAMXON | 220μF | ±20% | 50V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 10x12.5 |
 | 0566-0338-5 | EGT107M1JF12RRSHP | 3,714 | 2.09 | | PB-Free | RoHS | E-Cap GT Series 100μF/63Vdc, -40°C to +105°C ±20%, 7000 hrs, High Ripple Current Long Life Assurance, Low Impedance | SAMXON | 100μF | ±20% | 63V | 7000 | GT,Low impedance 105°C,4000-10000hrs | 3.5mm | 8x12 |
 | 0566-0339-7 | EGF108M1JK25RRSHP | 3,759 | 13.66 | | PB-Free | RoHS | E-Cap GF Series 1000μF/63Vdc -40°C to +105°C, ±20%, 4000hrs. | SAMXON | 1000μF | ±20% | 63V | 4000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 7.5mm | 16x25 |
 | 0566-0340-2 | EGF108M1HI25TCSMP | 11,563 | 8.72 | | PB-Free | RoHS | E-Cap GF Series 1000μF/50Vdc -40°C to +105°C, ±20%, 4000hrs. High Ripple Current, Low Impendence | SAMXON | 1000μF | ±20% | 50V | 4000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 5.0mm | 12.5x25 |
 | 0566-0341-4 | EKM107M1HF12RRS0P | 8,700 | 1.54 | | PB-Free | RoHS | E-Cap KM Series 100μF/50Vdc -40°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 100μF | ±20% | 50V | 2000 | KM,Standard 105°C,2000hrs | 3.5mm | 8x12 |
 | 0566-0342-6 | ULR827M0JF1ARRX0CR | 4,126 | 3.34 | | PB-Free | RoHS | Conductive Polymer Aluminum Solid Capacitor 820μF/6.3Vdc, ±20%, -55°C to+105°C, Higher Ripple Current, Low ESR | SAMXON | 820μF | ±20% | 6.3V | 2000 | ULR,Polymer-High Ripple and Low ESR 105°C,2000hrs | 3.5mm | 8x11.5 |
 | 0566-0344-1 | EGF227M1VG1BRRSHP | 19,415 | 1.54 | | PB-Free | RoHS | E-Cap GF Series 220μF/35Vdc -40°C to +105°C, ±20%, 3000hrs. High Ripple Current, Low Impendence | SAMXON | 220μF | ±20% | 35V | 3000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 5.0mm | 10x12.5 |
 | 0566-0345-2 | EGF107M1HF12RRS9P | 9,146 | 1.40 | | PB-Free | RoHS | E-Cap GF Series 100μF/50Vdc -40°C to +105°C, ±20%, 3000hrs. High Ripple Current, Low Impendence | SAMXON | 100μF | ±20% | 50V | 3000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 3.5mm | 8x12 |
 | 0566-0348-8 | EKM478M1HL40RRSAP | 5,839 | 25.84 | | PB-Free | RoHS | E-Cap KM Series 4700μF/50Vdc -40°C to +105°C,±20% ,2000hrs. Miniature Sized | SAMXON | 4700μF | ±20% | 50V | 2000 | KM,Standard 105°C,2000hrs | 7.5mm | 18x40 |
 | 0566-0349-1 | EKM228M1EI25RRSHP | 804 | 8.42 | | PB-Free | RoHS | E-Cap KM Series 2200μF/25Vdc -40°C to +105°C, ±20%, 2000hrs. Miniature Sized | SAMXON | 2200μF | ±20% | 25V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 12.5x25 |
 | 0566-0350-5 | EGF337M1CE11RRR9P | 30,363 | 1.00 | | PB-Free | RoHS | Aluminum Electrolytic Capacitor GF Series 330μF/16Vdc, ±20%, -40°C to +105°C, 2000hrs. High Ripple Current, Low Impendence | SAMXON | 330μF | ±20% | 16V | 2000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 2.5mm | 6.3x11 |
 | 0566-0354-3 | EKM477M1HI20TCSAP | 3 | 6.83 | | PB-Free | RoHS | E-Cap KM Series 470μF/50Vdc -40°C to +105°C, ±20%, 2000hrs. Miniature Sized | SAMXON | 470μF | ±20% | 50V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 12.5x20 |
 | 0566-0359-3 | ELP477M2WQ45SWSMP | 0 | 79.46 | | PB-Free | RoHS | E-CAP LP Series 470μF/450Volt -25°C to +85°C, ±20%, 2000hrs. Snap-In Type | SAMXON | 470μF | ±20% | 450V | 2000 | LP,Lug/Snap-in,Standard 85°C,2000hrs | 10.0mm | 35x45 |
