| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Capacitance | Tolerance | Voltage-Rated | Endurance (Hours) | Series | Lead Spacing | Diameter x Height(mm) |
| | | | | | | | | | | | | | | | |

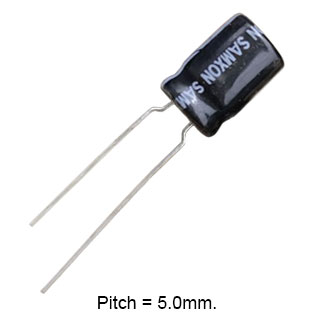

 | 0566-0271-6 | EKM226M1HD11TCSAP | 937 | 1.11 |  | PB-Free | RoHS | E-Cap KM Series 22μF/50Volt -40°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 22μF | ±20% | 50V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 5x11 |

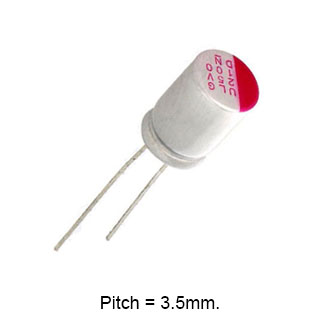

 | 0566-0272-9 | ULG107M1EF1ARRX0CR | 0 | 9.02 | | | RoHS | Conductive Polymer Aluminum Solid Capacitor 100μF/25Vdc, ±20%, -55°C to +105°C High Ripple Current, Low ESR | SAMXON | 100μF | ±20% | 25V | 2000 | ULG,Polymer-High Ripple and Low ESR 105°C,2000hrs | 3.5mm | 8x11.5 |
 | 0566-0273-2 | EKM477M1VG16TCSAP | 13,835 | 3.53 | | PB-Free | RoHS | E-Cap KM Series 470μF/35Volt -40°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 470μF | ±20% | 35V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 10x16 |
 | 0566-0274-5 | ELP228M1KP25SWSHP | 0 | 48.17 | | PB-Free | | E-Cap LP Series 2200μF/80Volt -40°C to +85°C,±20%,2000hrs Snap-In Type,Standard | SAMXON | 2200μF | ±20% | 80V | 2000 | LP,Lug/Snap-in,Standard 85°C,2000hrs | 10.0mm | 30x25 |
 | 0566-0283-6 | EGT108M1AG1BTCS0P | 0 | 3.24 | | PB-Free | | E-Cap GT Series 1000μF/10Volt -40°C to 105°C,±20%,6000hr,High Ripple Current Long Life Assurance,Low Impedance | SAMXON | 1000μF | ±20% | 10V | 6000 | GT,Low impedance 105°C,4000-10000hrs | 5.0mm | 10x12.5 |
 | 0566-0284-9 | EKM565M2GF12TVSAP | 0 | 2.47 | | PB-Free | | E-Cap KM Series 5.6μF/400Volt -25°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 5.6μF | ±20% | 400V | 2000 | KM,Standard 105°C,2000hrs | 3.5mm | 8x12 |
 | 0566-0285-2 | EGT477M1AE11TCSHP | 2 | 1.33 | | PB-Free | | E-Cap GT Series 470μF/10Volt -40°C to 105°C,±20%,4000hr,High Ripple Current Long Life Assurance,Low Impedance | SAMXON | 470μF | ±20% | 10V | 4000 | GT,Low impedance 105°C,4000-10000hrs | 5.0mm | 6.3x11 |

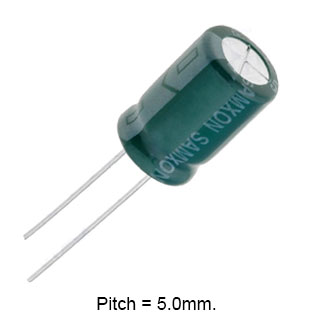

 | 0566-0289-4 | EGF108M1EG20RRSHP | 3,692 | 6.87 | | PB-Free | | E-Cap GF Series 1000μF/25Volt -40°C to +105°C,±20%,3000hrs. Miniature Sized | SAMXON | 1000μF | ±20% | 25V | 3000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 5.0mm | 10x20 |
 | 0566-0290-1 | EGF107M1EE11RRSHP | 6,098 | 1.43 | | PB-Free | | E-Cap GF Series 100μF/25Volt -40°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 100μF | ±20% | 25V | 2000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 2.5mm | 6.3x11 |

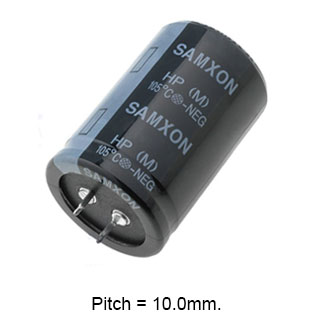

 | 0566-0297-2 | EHP337M2GQ30SWSHP | 0 | 94.06 | | PB-Free | RoHS | E-Cap HP Series 330μF/400Volt -25°C to +105°C,±20%,2000hrs Snap-In Type,Wide Temperature | SAMXON | 330μF | ±20% | 400V | 2000 | HP,Lug/Snap-in and Wide Temperature 105°C,2000hrs | 10.0mm | 35x30 |
 | 0566-0298-5 | EKM226M2GI20TCSAP | 12,781 | 8.46 | | PB-Free | RoHS | E-Cap KM Series 22μF/400Volt -25°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 22μF | ±20% | 400V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 12.5x20 |
| 0566-0299-8 | EKM226M1ED11TCSAP | 559 | 0.89 | | PB-Free | RoHS | E-Cap KM Series 22μF/25Volt -40°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 22μF | ±20% | 25V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 5x11 |
| 0566-0304-2 | EGF108M1CG20RRSMP | 32,049 | 3.56 | | PB-Free | RoHS | E-Cap GF Series 1000μF/16Volt -40°C to +105°C,±20%,3000hrs. Miniature Sized | SAMXON | 1000μF | ±20% | 16V | 3000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 5.0mm | 10x20 |
 | 0566-0306-8 | EGF477M1VG16TCTHP | 18,080 | 5.27 | | PB-Free | | E-Cap GF Series 470μF/35Volt -40°C to +105°C,±20%,3000hrs. Miniature Sized | SAMXON | 470μF | ±20% | 35V | 3000 | GF,Low Impedance & High Ripple 105°C,1000-4000hrs | 5.0mm | 10x16 |
 | 0566-0307-1 | EKM476M1CD11HESHP | 2,815 | 1.16 | | | | E-Cap KM Series 47μF/16VDC -40°C to +105°C,±20%,2000hrs. Miniature Sized | SAMXON | 47μF | ±20% | 16V | 2000 | KM,Standard 105°C,2000hrs | 5.0mm | 5x11 |
