| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Voltage-Rated | Capacitance | Capacitance Tolerance | Temperature Characteristic/Dielectric | Maximum Temperature | Package / Case | Vendor | Mounting Type | Lead Spacing |
| | | | | | | | | | | | | | | | | |
 | 0160-0159-9 | GRM1885C1H103JA01D | 9,309 | 1.08 |  | PB-Free | RoHS | Chip Monolithic Ceramic Cap 10nF/50VDC,±5%,C0G for General Purpose | 50V | 10nF | ±5% | C0G (NP0) | 125°C | 0603 (1608) | MURATA | Surface Mount | - |
| 0160-0179-7 | GRM21BR71A225KA01L | 3,791 | 0.96 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 2.2μF/10Vdc, ±10%, X7R | 10V | 2.2μF | ±10% | X7R | 125°C | 0805 (2012) | MURATA | Surface Mount | - |
| 0160-0181-7 | GRM31BR72J103KW01L | 1,491 | 1.90 | | PB-Free | | Chip Monolithic Ceramic Cap 10nF/630Vdc, ±10%, X7R | 630V | 10nF | ±10% | X7R | 125°C | 1206 (3216) | MURATA | Surface Mount | - |
| 0160-0182-1 | GRM31BR72E683KW01L | 2,823 | 2.80 | | | RoHS | Chip Monolithic Ceramic Cap 68nF/250Vdc, ±10% for General Purpose, High Dielectric Constant Type | 250V | 68nF | ±10% | X7R | 125°C | 1206 (3216) | MURATA | Surface Mount | - |
| 0160-0186-2 | GRM32ER71E226KE15L | 1 | 11.09 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 22μF/25Vdc, ±10%, X7R | 25V | 22μF | ±10% | X7R | 125°C | 1210 (3225) | MURATA | Surface Mount | - |
| 0160-0213-1 | GRM21BR61H106KE43L | 7,602 | 2.53 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 10μF/50VDC,±10% X5R,General Purpose | 50V | 10μF | ±10% | X5R | 85°C | 0805 (2012) | MURATA | Surface Mount | - |
| 0160-0226-3 | GRM32ER71H106KA12L | 1,849 | 10.58 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 10μF/50VDC, ±10%, X7R | 50V | 10μF | ±10% | X7R | 125°C | 1210 (3225) | MURATA | Surface Mount | - |

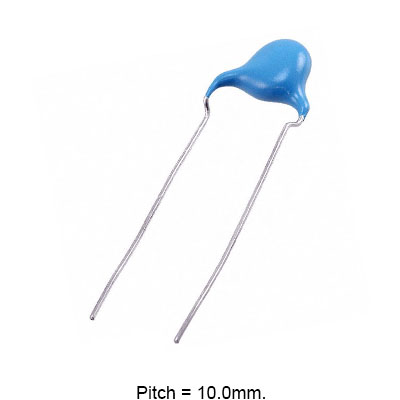

 | 0160-0229-2 | DE1E3KX102MN4AN01F | 2,594 | 4.14 | | | RoHS | Safety Standard Ceramic Capacitor 1nF/250Vac, ± 20%,Class X1/Y1,10mm Lead Spacing Crimp Long Lead | 440Vac/250Vac | 1nF | ±20% | E | 125°C | RADIAL | MURATA | Through Hole | 10mm |
 | 0160-0232-5 | RDER72J103K2K1H03B | 827 | 3.16 | | PB-Free | | Radial Lead Ceramic Capacitor 10nF/630VDC ±10% X7R,Lead Spacing 5.0mm,Inside Crimp Lead for General Use | 630V | 10nF | ±10% | X7R | 125°C | RADIAL | MURATA | Through Hole | 5mm |
| 0160-0234-1 | GRM2165C1H471JA01D | 100 | 0.95 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 470pF/50VDC ±5%,C0G | 50V | 470pF | ±5% | C0G (NP0) | 125°C | 0805 (2012) | MURATA | Surface Mount | - |
| 0160-0237-1 | GRM32ER61C476ME15L | 2,610 | 7.90 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 47μF/16Vdc, ±20%, X5R | 16V | 47μF | ±20% | X5R | 85°C | 1210 (3225) | MURATA | Surface Mount | - |

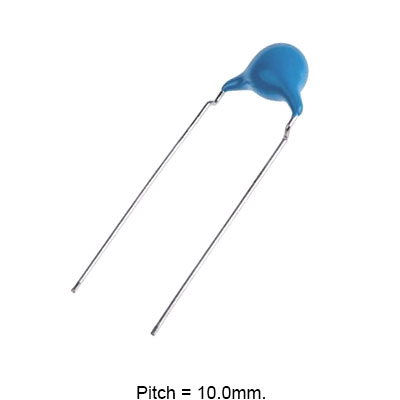

| 0160-0249-1 | DE1E3KX102MA4BN01F | 13,609 | 3.87 | | PB-Free | RoHS | Safety Standard Ceramic Capacitor 1nF/250Vac, ±20%, Class X1/Y1,10mm Lead Spacing Vertical Crimp Long Lead | 440Vac/250Vac | 1nF | ±20% | E | 125°C | RADIAL | MURATA | Through Hole | 10mm |
 | 0160-0251-1 | DE1E3KX222MN4AN01F | 15 | 6.40 | | PB-Free | RoHS | Safety Standard Ceramic Capacitor 2.2nF/250Vac ±20%,Class X1/Y1,10mm Lead Spacing, Vertical Crimp Taping Lead | 440Vac/250Vac | 2.2nF | ±20% | E | 125°C | RADIAL | MURATA | Through Hole | 10mm |
| 0160-0260-1 | GRM21BR61C106KE15L | 2,650 | 0.65 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 10μF/16Vdc, ±10%, X5R | 16V | 10μF | ±10% | X5R | 85°C | 0805 (2012) | MURATA | Surface Mount | - |
| 0160-0267-2 | GRM1885C2A6R8CA01D | 1,285 | 0.24 | | PB-Free | RoHS | Chip Monolithic Ceramic Cap 6.8pF/100VDC, ±0.25pF, C0G | 100V | 6.8pF | ±0.25pF | C0G (NP0) | 125°C | 0603 (1608) | MURATA | Surface Mount | - |
