| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Voltage-Rated | Capacitance | Capacitance Tolerance | Temperature Characteristic/Dielectric | Maximum Temperature | Package / Case | Vendor | Mounting Type | Lead Spacing |
| | | | | | | | | | | | | | | | | |

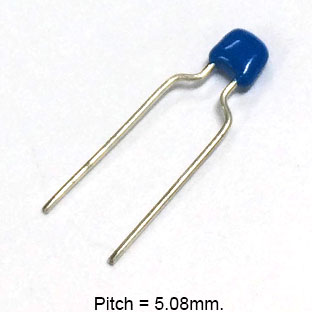

 | 0158-0290-6 | R330JCF5TH | 3,875 | 2.46 |  | PB-Free | RoHS | Multilayer Ceramic Cap 33pF/50VDC ±5%,NPO(C0G) Radial,High Seated Lead, Lead Spacing 5.08mm | 50V | 33pF | ±5% | C0G (NP0) | 85°C | RADIAL | AEC | Through Hole | 5.08mm |
 | 0158-0291-8 | T150JCHE041LF | 8 | 0.53 | | PB-Free | RoHS | Ceramic Disc Cap 15pF/50Vdc, ±5% | 50V | 15pF | ±5% | C0G (NP0) | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
| 0158-0292-1 | R474ZFF5TH | 9,883 | 2.70 | | PB-Free | RoHS | Multilayer Ceramic Cap 0.47μF/50Vdc,+80%/-20%,Y5V, Radial,High Seated Lead,Lead Spacing 5.08mm | 50V | 0.47μF | +80%/-20% | Y5V | 85°C | RADIAL | AEC | Through Hole | 5.08mm |
 | 0158-0293-2 | T221KSLE052LF | 493 | 0.55 | | PB-Free | RoHS | Ceramic Disc Cap 220pF/50Vdc, ±10%,SL | 50V | 220pF | ±10% | SL | 85°C | RADIAL | AEC | Through Hole | 5mm |
| 0158-0294-4 | H103MYFE062BF | 443 | 1.40 | | PB-Free | RoHS | Ceramic Disc Cap 10nF/50Vdc, ±20%,CLASS II,Y5V | 50V | 10nF | ±20% | Y5V | 85°C | RADIAL | AEC | Through Hole | 5mm |
| 0158-0296-8 | T220KUJE041LF | 10 | 0.48 | | PB-Free | RoHS | Ceramic Disc Capacitor Class I,Capacitance 22pF, Working Voltage 50V,Tolerance ±10%, Size <5.0mm, Lead Spacing 2.5mm,Bulk Straight,N | 50V | 22pF | ±10% | N750 | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
| 0158-0297-1 | H103ZZFE051LF | 14,949 | 0.55 | | PB-Free | RoHS | Ceramic Disc Cap 0.01μF/50Vdc,+80%/-20%,Z5V | 50V | 10nF | +80%/-20% | Z5V | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
| 0158-0298-2 | H471KYAE051LF | 2,174 | 0.55 | | PB-Free | | Ceramic Disc Cap 470pF/50Vdc, ±10% | 50V | 470pF | ±10% | Y5E | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
| 0158-0300-3 | S104ZYFE072BF | 61,323 | 1.10 | | PB-Free | RoHS | Ceramic Disc Cap 0.1μF/50Vdc ,+80%/-20%, Diameter 7.5mm. | 50V | 0.1μF | +80%/-20% | Y5V | 85°C | RADIAL | AEC | Through Hole | 5mm |

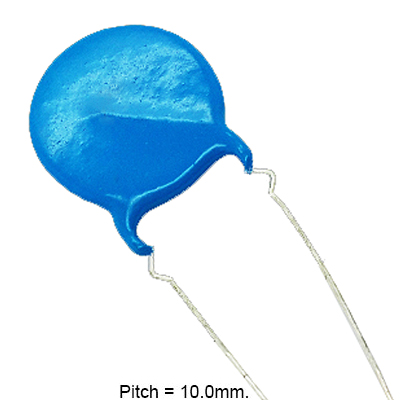

 | 0158-0301-5 | H103MZES155IF | 6,920 | 9.00 | | PB-Free | RoHS | Ceramic Disc Cap 10nF/2KVdc, ±20%, Z5U Class II, Diameter 15.5mm., Bulk Outward Kink | 2000V | 10nF | ±20% | Z5U | 85°C | RADIAL | AEC | Through Hole | 10mm |
| 0158-0302-7 | T470KSLM052LF | 3,330 | 0.90 | | PB-Free | RoHS | Ceramic Disc Cap 47pF/500Vdc, ±10%,Class I, Diameter 5.5mm, Bulk Straight Lead | 500V | 47pF | ±10% | SL | 85°C | RADIAL | AEC | Through Hole | 5mm |
| 0158-0303-9 | T100KCHE041LF | 2,742 | 0.53 | | PB-Free | RoHS | Ceramic Disc Cap 10pF/50Vdc, ±10%, Class I, Diameter 5mm, Bulk Straight Lead | 50V | 10pF | ±10% | C0G (NP0) | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
 | 0158-0304-1 | H222KYBE052AF | 0 | 1.12 | | | RoHS | Ceramic Disc Cap 2.2nF/50Vdc, ±10%, Y5P, Class II, Diameter 5.5mm MAX, Tape Inward Kink | 50V | 2.2nF | ±10% | Y5P | 85°C | RADIAL | AEC | Through Hole | 5mm |
| 0158-0305-3 | T200KUJE051LF | 10,276 | 0.60 | | PB-Free | RoHS | Ceramic Disc Cap 20pF/50Vdc, ±10%, Class I, Diameter 5.5mm, Bulk Straight Lead | 50V | 20pF | ±10% | N750 | 85°C | RADIAL | AEC | Through Hole | 2.5mm |
 | 0158-0307-7 | H103MZES155QF-CL | 15,499 | 8.80 | | PB-Free | RoHS | Ceramic Disc Cap 10nF/2KVdc, ±20%, Z5U, Class II, Diameter 15.5mm, Lead Length 4.5mm. | 2000V | 10nF | ±20% | Z5U | 85°C | RADIAL | AEC | Through Hole | 10mm |
