| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Vendor | Description | Size / Dimension | Input Voltage | Output Voltage | Output Current (MAX) | Power Supply Type | Operating Temperature |
| | | | | | | | | | | | | | | |
 | 0658-0055-6 | B2415S-1WR3 | 1 | 50.52 |  | PB-Free | RoHS | MORNSUN | DC/DC Converter 1W, Fixed Input Voltage, Output 15Vdc/67mA Max, Switching Frequency 260kHz, Input 24Vdc,Isolated and Unregulated Single Output | 11.60mm x 6.00mm x 10.16mm | 21.6-26.4Vdc | 15Vdc | 67mA | Isolated & Unregulated Converter | -40°C ~ 105°C |
 | 0658-0056-8 | F1205S-3WR2 | 0 | 144.70 | | PB-Free | RoHS | MORNSUN | DC/DC Converter 3W, Fixed Input Voltage, Output 5Vdc/600mA Max, Switching Frequency 100kHz, Input 12Vdc,Isolated and Unregulated Single Output | 19.65mm x 7.05mm x 10.16mm | 10.8-13.2Vdc | 5Vdc | 600mA | Isolated & Unregulated Converter | -40°C ~ 85°C |
 | 0658-0066-1 | B2405XT-1WR3 | 0 | 71.14 | | PB-Free | RoHS | MORNSUN | 1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Single Output, Input 24Vdc Nominal, Output 5V/200mA Max, Switching Frequency 260kHz | 13.20mm x 11.40mm x 7.25mm | 21.6-26.4Vdc | 5Vdc | 200mA | Isolated & Unregulated Converter | -40°C ~ 105°C |
 | 0658-0128-7 | IB0505LS-1WR3 | 0 | 62.07 | | PB-Free | RoHS | MORNSUN | 1W Isolated DC-DC Converter, Fixed Input Voltage, Regulated Single Output, Input 5Vdc Nominal, Output 5V/200mA Max, Switching Frequency 270kHz | 19.65mm x 6.00mm x 10.16mm | 4.75-5.25Vdc | 5Vdc | 200mA | Isolated & Regulated Converter | -40°C ~ 85°C |
 | 0658-0132-8 | A0312XT-1WR3 | 8 | 83.95 | | PB-Free | RoHS | MORNSUN | 1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Dual Output, Input 3.3Vdc Nominal, Output Voltage ±12Vdc, Output Current ±42mA | 15.24mm x 11.40mm x 7.25mm | 2.97-3.63Vdc | ±12Vdc | ±42mA | Isolated & Unregulated Converter | -40°C ~ 105°C |
 | 0658-0133-1 | B0305LS-1WR3 | 0 | 67.19 | | PB-Free | RoHS | MORNSUN | 1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Single Output, Input 3.3Vdc Nominal, Output 5Vdc/200mA Max. | 19.65mm x 6.00mm x 10.16mm | 2.97-3.63Vdc | 5Vdc | 200mA | Isolated & Unregulated Converter | -40°C ~ 105°C |
 | 0658-0155-1 | VCF4805EBO-120WR3-N | 5 | 640.60 | | PB-Free | RoHS | MORNSUN | 120W Isolated DC-DC Converter, Wide Input and Regulated Single Output, Input 48Vdc, Output 5Vdc/24A, Industry Standard Package 1/8 Brick | 58.42mm x 22.86mm x 9.69mm | 36-75Vdc | 5Vdc | 24A | Isolated & Regulated Converter | -40°C ~ 100°C |
 | 0658-0163-9 | A0512S-1WR3 | 0 | 56.59 | | PB-Free | RoHS | MORNSUN | 1W Isolated DC-DC Converter, Fixed Input Voltage, Unregulated Dual Output, Input 5Vdc Nominal, Output Voltage ±12Vdc, Output Current ±42mA | 19.65mm x 6.00mm x 10.16mm | 4.5-5.5Vdc | ±12Vdc | ±42mA | Isolated & Unregulated Converter | -40°C ~ 105°C |
 | 0757-0009-9 | FPLR12SR7516NA | 2 | 338.50 | | PB-Free | RoHS | FDK | Non-Isolated DC-DC Converter 16A ,6-14Vdc Input 0.7525 - 5.5Vdc Output Negative and Positive ON/OFF Logic | 33.00mm x 13.40mm x 8.30mm | 6-14Vdc | 0.7525-5.5Vdc | 16A | Non-Isolated & Regulated Converter | -40°C ~ 85°C |
 | 0993-0005-3 | REC3-0515DRW/H4/A | 2 | 1,598.00 | | PB-Free | RoHS | RECOM POWER | 3W DC-DC Converter, Input Range 4.5-9Vdc (5Vdc Nominal), Output ±15Vdc/±100mA, 4kVdc/1s Isolation, Feedback Regulated Output | 31.80mm x 20.30mm x 10.20mm | 4.5-9Vdc | ±15Vdc | ±100mA | Isolated & Regulated Converter | -40°C ~ 105°C |

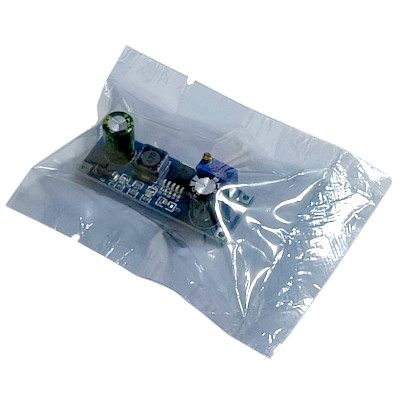

 | 0999-3768-6 | XL7015 | 278 | 45.97 | | PB-Free | RoHS | N/A | DC-DC Step-Down Module Wide Input Voltage Range 5V to 80V Adjustable Output Voltage 5V to 20V | 16.00mm x 44.00mm | 5-80Vdc | 5-20Vdc | 800mA | Non-Isolated & Regulated Converter | - |
 | 1526-0001-1 | OKY3498-2 | 1,199 | 48.62 | | PB-Free | RoHS | OKYSTAR | DC-DC Converter (Boost), Input Range 4V-35V, Output Voltage 5Vdc-38Vdc (Adjustable), Output Current 4A MAX. | 48.10mm x 24.90mm | 4-35Vdc | 5-38Vdc | 4A | Non-Isolated & Regulated Converter | -45°C ~ 85°C |
 | 1829-0001-3 | MAU202 | 302 | 211.50 | | PB-Free | RoHS | MINMAX | 1W DC-DC Converter, Input Voltage 5Vdc Typ, Output 5Vdc/200mA Max, Unregulated Output Voltage, I/O Isolation 3000 VDC | 19.50mm x 6.10mm x 10.20mm | 4.5-5.5Vdc | 5Vdc | 200mA | Isolated & Unregulated Converter | -40°C ~ 90°C |
 | 1887-0001-3 | B0505XT-1WR3 | 0 | 55.59 | | PB-Free | RoHS | YLPTEC | 1W Isolated DC/DC Converter, Output 5Vdc/200mA Max Input Voltage 5Vdc Nominal, Fixed Input Voltage, Unregulated Single Output | 13.20mm x 11.40mm x 7.25mm | 4.5-5.5Vdc | 5Vdc | 200mA | Isolated & Unregulated Converter | -40°C ~ 105°C |
 | 1890-0002-1 | NN1-12S05ANT | 831 | 70.35 | | PB-Free | RoHS | AIPU POWER | 1W DC-DC Converter, Fixed Input Voltage, Isolated and Unregulated Output, Input 12Vdc Nominal, Output 5V/200mA Max | 12.70mm x 11.20mm x 7.25mm | 10.8-13.2Vdc | 5Vdc | 200mA | Isolated & Unregulated Converter | -40°C ~ 105°C |
