| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Number of Pins | Mounting Orientation | Pitch | Series | Number of Rows | Connector Type | Wire Gauge | Mounting Type | Vendor |
| | | | | | | | | | | | | | | | | |
 | 0610-0230-2 | 2218H-09-WH2 | 16,948 | 1.46 |  | PB-Free | RoHS | Housing Connector 9 Pins, Pitch 2.54mm, Single Row | 9 | - | 2.54mm | 2217/2218 (2.54mm) | Single | Housing | - | - | NELTRON |
 | 0610-0231-4 | 2218H-10-WH2 | 2,064 | 1.43 | | PB-Free | RoHS | Housing Connector 10 Pins, Pitch 2.54mm, Single Row | 10 | - | 2.54mm | 2217/2218 (2.54mm) | Single | Housing | - | - | NELTRON |
 | 0610-0239-1 | 2226A-01 | 39,250 | 0.34 | | PB-Free | RoHS | Housing Connector 1 Pins, Pitch 2.54mm, Single Row | 1 | - | 2.54mm | 2226 (2.54mm) | Single | Housing | - | - | NELTRON |
 | 0610-0240-5 | 2226A-04 | 6,654 | 0.46 | | PB-Free | RoHS | Housing Connector 4 Pins, Pitch 2.54mm, Single Row | 4 | - | 2.54mm | 2226 (2.54mm) | Single | Housing | - | - | NELTRON |
 | 0610-0243-1 | 2217R-02-WH2-322272 | 0 | 0.74 | | PB-Free | RoHS | Wafer Connector 2 Pins, Pitch 2.54mm, Right Angle Type, Voltage/Current Rating 250V/3A, Contact Brass, Tin Plated | 2 | Right Angle | 2.54mm | 2217/2218 (2.54mm) | Single | Wafer | - | Through Hole | NELTRON |
 | 0610-0248-1 | 2417RJ-08 | 10,896 | 2.12 | | PB-Free | RoHS | Wafer Connector 8 Pins, Pitch 2.00mm, Right Angle Type, Voltage/Current Rating 100V/2A, Contact Copper Alloy, Tin Plated | 8 | Right Angle | 2.00mm | 2417/2418 (2.00mm) | Single | Wafer | - | Through Hole | NELTRON |
 | 0610-0261-3 | 5561R-06 | 1,104 | 6.62 | | PB-Free | RoHS | Wafer Connector 6 Pins, Pitch 3.0mm, Double Row, Right Angle, Voltage/Current Rating 250V/5A, Contact Copper Alloy, Tin Plated | 6 | Right Angle | 3.00mm | 5560/5561 (3.0mm) | Double | Wafer | - | Through Hole | NELTRON |
 | 0610-0262-5 | 5561S-06 | 843 | 6.43 | | PB-Free | RoHS | Wafer Connector 6 Pins, Pitch 3.0mm, Double Row, Straight Type, Voltage/Current Rating 250V/5A, Contact Copper Alloy, Tin Plated | 6 | Straight | 3.00mm | 5560/5561 (3.0mm) | Double | Wafer | - | Through Hole | NELTRON |
 | 0610-0263-7 | 5560-06 | 1,718 | 2.11 | | PB-Free | RoHS | Receptacle Housing Connector 6 Pins, Pitch 3.0mm, Double Row | 6 | - | 3.00mm | 5560/5561 (3.0mm) | Double | Housing | - | - | NELTRON |

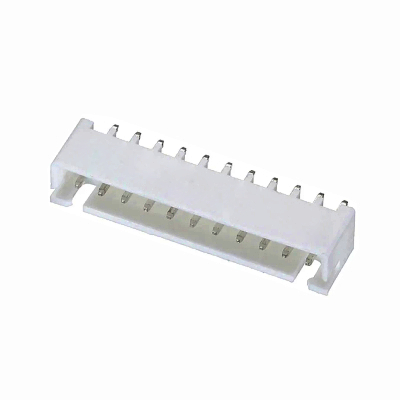

 | 0610-0271-6 | 2317SJ-11 | 530 | 2.94 | | PB-Free | RoHS | Wafer Connector 11 Pins, Pitch 2.50mm, Straight Type, Voltage/Current Rating 250V/3A, Contact Brass, Tin Plated, Kink Pin | 11 | Straight | 2.50mm | 2317/2318 (2.50mm) | Single | Wafer | - | Through Hole | NELTRON |

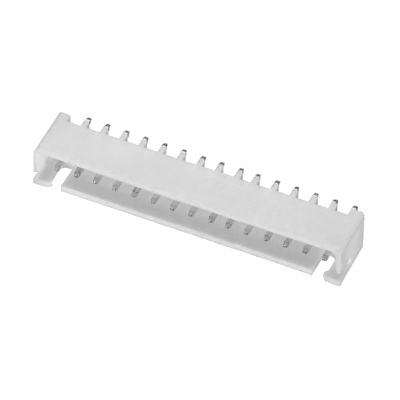

 | 0610-0272-8 | 2317SJ-15 | 818 | 4.37 | | PB-Free | RoHS | Wafer Connector 15 Pins, Pitch 2.50mm, Straight Type, Voltage/Current Rating 250V/3A, Contact Brass, Tin Plated, Kink Pin | 15 | Straight | 2.50mm | 2317/2318 (2.50mm) | Single | Wafer | - | Through Hole | NELTRON |
 | 0610-0275-4 | 2269R-10-01 | 750 | 9.23 | | PB-Free | RoHS | Wafer Connector 10 Pins, Double Rows, Pitch 4.20mm Right Angle Type, Contact Copper Alloy, Tin Plated Transparent Insulator, UL94V-2, 600V/9A | 10 | Right Angle | 4.20mm | 2257/2259/2266/2269 (4.20mm) | Double | Wafer | - | Through Hole | NELTRON |
 | 0610-0278-1 | 2217R-05-WH2-322272 | 13,986 | 1.43 | | PB-Free | RoHS | Wafer Connector 5 Pins, Pitch 2.54mm, Right Angle Type, Voltage/Current Rating 250V/3A, Contact Brass, Tin Plated | 5 | Right Angle | 2.54mm | 2217/2218 (2.54mm) | Single | Wafer | - | Through Hole | NELTRON |
 | 0610-0279-2 | 2257-02 | 5,330 | 2.14 | | PB-Free | RoHS | Housing Connector 2 Pins, Pitch 4.20mm, Double Row, V2 Material | 2 | - | 4.20mm | 2257/2259/2266/2269 (4.20mm) | Double | Housing | - | - | NELTRON |

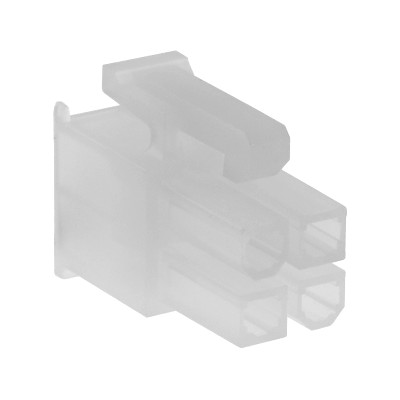

 | 0610-0280-7 | 2257-04 | 1,249 | 2.39 | | PB-Free | RoHS | Housing Connector 4 Pins, Pitch 4.20mm, Double Row, V2 Material | 4 | - | 4.20mm | 2257/2259/2266/2269 (4.20mm) | Double | Housing | - | - | NELTRON |
