| Picture | ES Part No. | Part no | Stock | Price | Datasheet | Pb Free | RoHS | Description | FET Type | Continuous Drain Current (Id@25(C)) | RDS(on) (Max) @ Id,Vgs | Drain - Source Voltage | Series | VGS(th) @Id | Package / Case | Vendor |
| | | | | | | | | | | | | | | | |
 | 0087-0315-3 | SSM3J351R,LF(T | 17,425 | 5.60 |  | PB-Free | RoHS | MOSFET P-Channel 60V/3.5A,2W RDS(on) 129mΩ Typ.,U-MOS VI | P-channel | 3.5A | 134mΩ @1A,10V | 60V | U-MOS VI | 0.8 - 2V @1mA | SOT-23-3 (SOT-346) | TOSHIBA |
| 0087-0342-6 | SSM3J332R,LF(T | 3,505 | 2.95 | | PB-Free | RoHS | MOSFET P-Channel 30V/6A, 1W RDS(on) 42.0mΩ, U-MOS VI | P-channel | 6A | 42mΩ @5A,10V | 30V | U-MOS VI | 0.5 - 1.2V @1mA | SOT-23-3 (SOT-346) | TOSHIBA |
 | 0087-0347-6 | TJ20S04M3L(T6L1,NQ | 1,936 | 19.82 | | PB-Free | RoHS | MOSFET P-Channel 40V/20A, 41W RDS(on) 21mΩ Typ, U-MOS VI AEC-Q101 Qualified | P-channel | 20A | 22.2mΩ @10A,10V | 40V | U-MOS VI | 2 - 3V @1mA | DPAK (TO-252) | TOSHIBA |
 | 0087-0348-8 | TK58E06N1,S1X(S | 0 | 24.79 | | PB-Free | RoHS | MOSFET N-Channel 60V/105A,110W RDS(on) 4.4mΩ Typ,U-MOS VIII-H | N-channel | 105A | 5.4mΩ @29A,10V | 60V | U-MOS VIII-H | 2 - 4V @0.5mA | TO-220-3 | TOSHIBA |
 | 0087-0355-5 | TK9A20DA,S4X(S | 2,500 | 17.91 | | PB-Free | RoHS | MOSFET N-Channel 200V/8.5A, 30W RDS(on) 0.26Ω Typ, π-MOS VII | N-channel | 8.5A | 400mΩ @4.3A,10V | 200V | π-MOS VII | 1.5 - 3.5V @1mA | TO-220F-3 | TOSHIBA |
| 0087-0367-2 | SSM3K347R,LF(T | 0 | 4.37 | | PB-Free | RoHS | MOSFET N-Channel 38V/2A,2W RDS(on) 350mΩ Typ.,Built-in Pull Down Resistance 47 kΩ | N-channel | 2A | 340mΩ @1A,10V | 38V | U-MOS IV | 1.4 - 2.4V@1mA | SOT-23-3 (SOT-346) | TOSHIBA |
 | 0087-0375-1 | T2N7002AK,LM(T | 0 | 0.63 | | PB-Free | RoHS | MOSFET N-Channel 60V/200mA,320mW RDS(on) 2.8mΩ Typ. | N-channel | 0.2A | 3900mΩ @100mA,10V | 60V | - | 1.1 - 2.1V @250uA | SOT-23-3 (SOT-346) | TOSHIBA |
| 0087-0376-3 | T2N7002BK,LM(T | 0 | 0.62 | | PB-Free | RoHS | MOSFET N-Channel 60V/400mA,1W RDS(on) 1.05mΩ Typ. | N-channel | 0.4A | 1500mΩ @0.1A,10V | 60V | - | 1.1 - 2.1V @250uA | SOT-23-3 (SOT-346) | TOSHIBA |

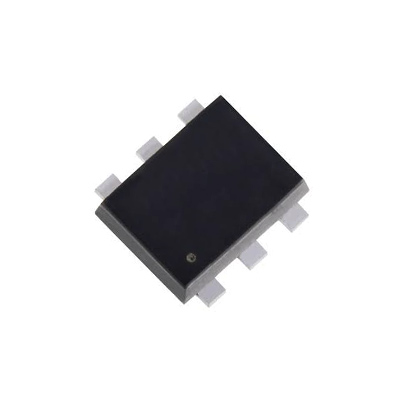

 | 0087-0381-6 | SSM6N357R,LF(T | 0 | 6.10 | | PB-Free | RoHS | MOSFET N-Channel 60V/650mA,1.5W RDS(on) 1.2mΩ Typ.,Built-in Internal Zener Diodes and Resistors | 2 N-channel | 0.65A | 1800mΩ @150mA,5V | 60V | - | 1.3 - 2.0V@1mA | TSOP-6 | TOSHIBA |
| 0087-0383-1 | TK110P10PL,RQ(S2 | 0 | 17.64 | | PB-Free | RoHS | MOSFET N-Channel 100V/60A,75W RDS(on) 11.5mΩ Typ.U-MOSIX-H | N-channel | 60A | 10.6mΩ @20A,10V | 100V | U-MOS IX-H | 1.5 - 2.5V @0.3mA | DPAK (TO-252) | TOSHIBA |
| 0087-0390-7 | SSM3K341R,LF(T | 7,805 | 8.26 | | PB-Free | RoHS | MOSFET N-Channel 60V/6A,1.2W RDS(on) 28mΩ Typ.,4.0V Drive,U-MOSVIII-H | N-channel | 6A | 36mΩ @5A,10V | 60V | U-MOS VIII-H | 1.5 - 2.5V @0.1mA | SOT-23-3 (SOT-346) | TOSHIBA |
| 0087-0391-9 | SSM3J356R,LF(T | 5,661 | 4.27 | | PB-Free | RoHS | MOSFET P-Channel 60V/2A,1W RDS(on) 240mΩ Typ.,U-MOS VI | P-channel | 2A | 300mΩ @1A,10V | 60V | U-MOS VI | 0.8 - 2V @1mA | SOT-23-3 (SOT-346) | TOSHIBA |
 | 0087-0392-1 | SSM6L09FU(TE85L,F) | 1,671 | 5.02 | | PB-Free | RoHS | MOSFET N/P-Channel 30V,0.4A/0.2A (N/P),300mW, RDS(on) 1.0Ω Typ, π-MOS VI | N and P channel | 0.4A,0.2A | 700mΩ @0.2A,10V,270mΩ @0.1A,10V | 30V | π-MOS VI | 1.1 - 1.8V @0.1mA,1.1 - 1.8V @0.1mA | SOT-23-6 | TOSHIBA |
| 0087-0408-1 | TK100A06N1,S4X(S | 8,469 | 49.53 | | PB-Free | RoHS | MOSFET N-Channel 60V/100A, 45W RDS(on) 2.2mΩ Typ, U-MOS VIII-H | N-channel | 100A | 2.7mΩ @50A,10V | 60V | U-MOS VIII-H | 2 - 4V @1mA | TO-220F-3 | TOSHIBA |
| 0087-0463-8 | SSM3J334R,LF(T | 95 | 2.74 | | PB-Free | RoHS | MOSFET P-Channel 30V/4A, 1W RDS(on) 71mΩ, U-MOS VI | P-channel | 4A | 71mΩ @3A,10V | 30V | U-MOS VI | 0.8 - 2V @100uA | SOT-23-3 (SOT-346) | TOSHIBA |
