| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Current | Series | Impedance@100MHz | Number of Circuits | Mounting Type | Package / Case |
| | | | | | | | | | | | | | | |
 | 0160-0033-8 | BLM18SG700TN1D | 21,081 | 1.45 |  | PB-Free | RoHS | Chip Ferrite Beads (Inductor Type) 70Ω, ±25% Rate Current 4000mA, DC Resistance(DCR) 0.020Ω | MURATA | 4A | BLM | 70Ω | 1 | Surface Mount | 0603 (1608) |
| 0160-0090-3 | BLM18HG601SH1D | 3,990 | 1.19 | | PB-Free | | Chip Ferrite Beads for GHz Band General Use, Impedance 700Ω Typical at 1GHz Rated Current 200mA, DC Resistance 1Ω | MURATA | 0.2A | BLM | 600Ω | 1 | Surface Mount | 0603 (1608) |
| 0160-0207-8 | BLM18PG471SN1D | 15,286 | 0.47 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 470Ω ±25% Rated Current 1000mA, DC Resistance 0.2Ω | MURATA | 1A | BLM | 470Ω | 1 | Surface Mount | 0603 (1608) |
| 0160-0450-1 | BLM31PG121SN1L | 2,565 | 5.12 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 120Ω±25% Rate Current 3500mA DC Resistance(DCR) 0.02Ω | MURATA | 3.5A | BLM | 120Ω | 1 | Surface Mount | 1206 (3216) |

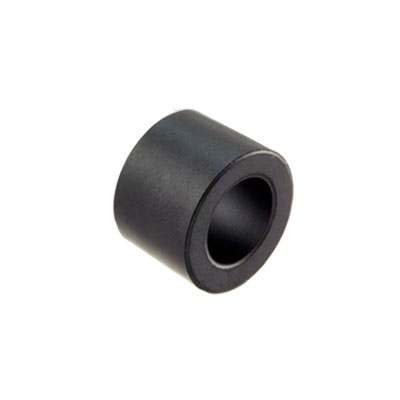

 | 0160-0585-4 | FSRB100060RTB00B | 0 | 9.55 | | PB-Free | RoHS | Ferrite Ring Core 316Ω @100MHz | MURATA | - | FSRB | 316Ω | - | - | - |
| 0160-0657-3 | BLM18PG300SN1D | 7,128 | 0.47 | | PB-Free | RoHS | Chip Ferrite Beads (Inductor Type) 30Ω ±25%, Rate Current 1000mA, DC Resistance(DCR) 0.05Ω | MURATA | 1A | BLM | 30Ω | 1 | Surface Mount | 0603 (1608) |
| 0160-0694-9 | BLM21PG221SN1D-T | 8 | 0.98 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 220Ω ±25% Rate Current 2A DC Resistance(DCR) 45mΩ | MURATA | 2A | BLM | 220Ω | 1 | Surface Mount | 0805 (2012) |

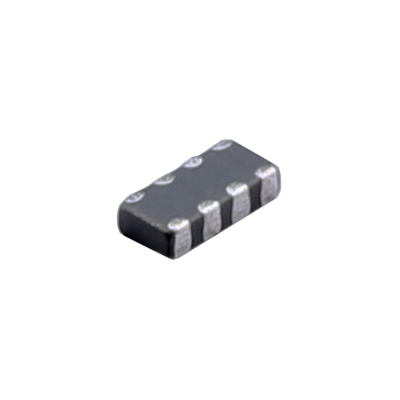

 | 0160-0702-2 | BLA2ABD102SN4D | 0 | 6.93 | | PB-Free | RoHS | Chip Ferrite Bead Array For High Speed Signal Line Inductor Type, 1000Ω ±25% at 100MHz, Rated Current 50mA, 4 Circuits, DC Resistance 1Ω | MURATA | 50mA | BLA | 1KΩ | 4 | Surface Mount | 0804 (2010) |
| 0160-0715-1 | BLM31KN601SZ1L | 0 | 5.96 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 600Ω ±25% Rated Current 2900mA, DC Resistance 0.038Ω, For Automotive Electronics | MURATA | 2.9A | BLM | 600Ω | 1 | Surface Mount | 1206 (3216) |
| 0160-0721-6 | BLM21BD121SN1D | 47,443 | 1.84 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 120Ω ±25% Rate Current 350mA DC Resistance(DCR) 250mΩ | MURATA | 0.35A | BLM | 120Ω | 1 | Surface Mount | 0805 (2012) |
| 0160-0860-1 | BLM15PX800SN1D | 0 | 0.42 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 80Ω ±25%, Rated Current 2300mA, DC Resistance 0.038Ω | MURATA | 2.3A | BLM | 80Ω | 1 | Surface Mount | 0402 (1005) |
| 0160-0986-2 | BLM18EG221SN1D | 6,310 | 1.16 | | PB-Free | RoHS | Chip Ferrite Beads 220Ω ±25%, Rated Current 2000mA, DC Resistance 0.05Ω, For GHz Band General Use | MURATA | 2A | BLM | 220Ω | 1 | Surface Mount | 0603 (1608) |
| 0160-1044-5 | BLM21SP331SN1D | 18,243 | 5.11 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 330Ω ±25% Rated Current 2800mA, DC Resistance 0.04Ω | MURATA | 2.8A | BLM | 330Ω | 1 | Surface Mount | 0805 (2012) |
| 0160-1050-1 | BLM18KG121TN1D-T | 23 | 0.59 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 120Ω ±25% Rated Current 3000mA, DC Resistance 0.03Ω | MURATA | 3A | BLM | 120Ω | 1 | Surface Mount | 0603 (1608) |
| 0160-1051-2 | BLM18KG221SN1D-T | 234 | 0.70 | | PB-Free | RoHS | Chip Ferrite Beads for Power Lines 220Ω ±25% Rated Current 2200mA, DC Resistance 0.05Ω | MURATA | 2.2A | BLM | 220Ω | 1 | Surface Mount | 0603 (1608) |
