Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Coil Voltage | Contact Rating | Switch Function | Mounting | Dimension (WxDxH) | Series | Operating Function | Vendor |
1163-0038-2 | YQ202-S-112DM | 972 | 13.79 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/0.8W, 1 Form A (SPST),Contact Rating 20A 14VDC | 12VDC | 20A | SPST (1 Form A) | PCB Through Hole | 15.4 x 19.1 x 19.0mm | YQ202 | Non-Latching Type | YONGNENG | ||
1163-0039-4 | YQ202-S-112D | 1,825 | 15.39 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/0.8W, 1 Form C (SPDT),Contact Rating 20A 14VDC | 12VDC | 20A | SPDT (1 Form C) | PCB Through Hole | 15.4 x 19.1 x 19.0mm | YQ202 | Non-Latching Type | YONGNENG | ||
1163-0040-9 | YQ501-S-112DM | 1,187 | 11.95 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/0.6W, 1 Form A (SPST),Contact Rating 20A 14VDC and 5A 250VAC | 12VDC | 20A | SPST (1 Form A) | PCB Through Hole | 12.2 x 15.5 x 17.2mm | YQ501 | Non-Latching Type | YONGNENG | ||
1163-0041-1 | YQ501-S-112D | 2,207 | 14.71 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/0.6W, 1 Form C (SPDT),Contact Rating 20A 14VDC and 5A 250VAC | 12VDC | 20A | SPDT (1 Form C) | PCB Through Hole | 12.2 x 15.5 x 17.2mm | YQ501 | Non-Latching Type | YONGNENG | ||
1163-0042-3 | YQ502-S-112DE | 864 | 32.34 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.6W, 1 Form C (SPDT),Contact Rating 40A 14VDC, Europe Footprint | 12VDC | 40A | SPDT (1 Form C) | Socket Mount | 21.0 x 26.0 x 24.2mm | YQ502 | Non-Latching Type | YONGNENG | ||
1163-0043-5 | YQ502-S-112DME | 620 | 28.08 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.6W, 1 Form A (SPST),Contact Rating 40A 14VDC, Europe Footprint | 12VDC | 40A | SPST (1 Form A) | Socket Mount | 21.0 x 26.0 x 24.2mm | YQ502 | Non-Latching Type | YONGNENG | ||
1163-0044-7 | YQ503-S-112D | 915 | 36.59 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.5W,sealed 1 Form C (SPDT),Contact Rating 30A 14VDC, | 12VDC | 30A | SPDT (1 Form C) | Socket Mount | 15.0 x 20.4 x 33.0mm | YQ503 | Non-Latching Type | YONGNENG | ||

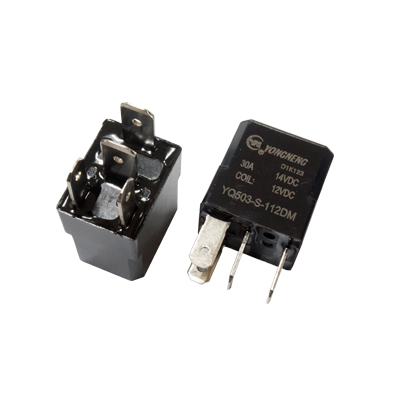

1163-0045-9 | YQ503-S-112DM | 404 | 27.20 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.5W sealed 1 Form A (SPST),Contact Rating 30A 14VDC | 12VDC | 30A | SPST (1 Form A) | Socket Mount | 15.0 x 20.4 x 33.0mm | YQ503 | Non-Latching Type | YONGNENG | ||
1163-0046-1 | YQ505-S-112DMF | 405 | 33.74 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.44W, 1 Form A (SPST),Contact Rating 30A 14VDC, With Bracket | 12VDC | 30A | SPST (1 Form A) | Chassis Mount | 25.0 x 29.0 x 61.5mm | YQ505 | Non-Latching Type | YONGNENG | ||
1163-0047-3 | YQ506-S-112DM | 292 | 41.27 | PB-Free | RoHS | Automotive Relay, Coil 12VDC/1.6W, 1 Form A (SPST), Contact Rating 40A 14VDC | 12VDC | 40A | SPST (1 Form A) | Socket Mount | 25.5 x 25.5 x 34.0mm | YQ506 | Non-Latching Type | YONGNENG | ||
1163-0048-5 | YQ506-S-112D | 1,457 | 38.06 | PB-Free | RoHS | Automotive Relay, Coil 12VDC/1.6W, 1 Form C (SPDT), Contact Rating 40A 14VDC | 12VDC | 40A | SPDT (1 Form C) | Socket Mount | 25.5 x 25.5 x 34.0mm | YQ506 | Non-Latching Type | YONGNENG | ||

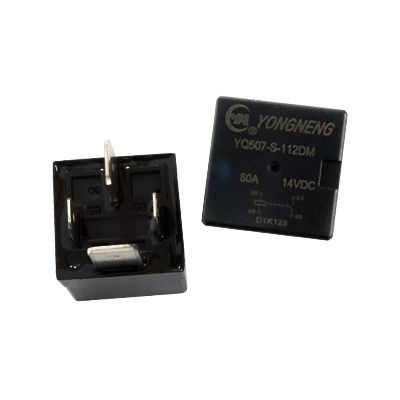

1163-0049-7 | YQ507-S-112DM | 901 | 48.95 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.6W, 1 Form A (SPST),Contact Rating 80A 14VDC | 12VDC | 80A | SPST (1 Form A) | Socket Mount | 25.5 x 25.5 x 37.5mm | YQ507 | Non-Latching Type | YONGNENG | ||

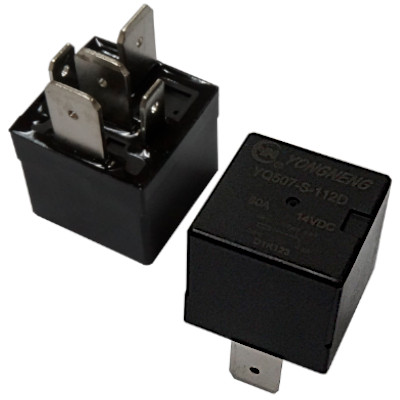

1163-0050-2 | YQ507-S-112D | 892 | 60.53 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.6W, 1 Form C (SPDT),Contact Rating 80A 14VDC | 12VDC | 80A | SPDT (1 Form C) | Socket Mount | 25.5 x 25.5 x 37.5mm | YQ507 | Non-Latching Type | YONGNENG | ||
1163-0051-4 | YQ508-S-112DM | 8 | 36.41 | PB-Free | RoHS | Automotive Relay,Coil 12VDC/1.44W, 1 Form A (SPST),Contact Rating 20A 14VDC | 12VDC | 20A | SPST (1 Form A) | Socket Mount | 18.5 x 24.5 x 44.5mm | YQ508 | Non-Latching Type | YONGNENG | ||
1163-0052-6 | YQ509-S-112DMF | 381 | 54.97 | PB-Free | RoHS | Automotive Relay with Bracket,Coil 12VDC/1.8W, 1 Form A (SPST),Contact Rating 30A 14VDC, 1 Set Including Relay, Mounting Bracket, Fuse | 12VDC | 30A | SPST (1 Form A) | Chassis Mount | 25.5 x 36.5 x 47.0mm | YQ509 | Non-Latching Type | YONGNENG |
