| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Vendor | Description | Output Voltage | Output Current | Input Voltage | Power | Features | Operating Temperature | No. of Output | Form Factor | Size/Dimension (LxWxD) |
| | | | | | | | | | | | | | | | | | |

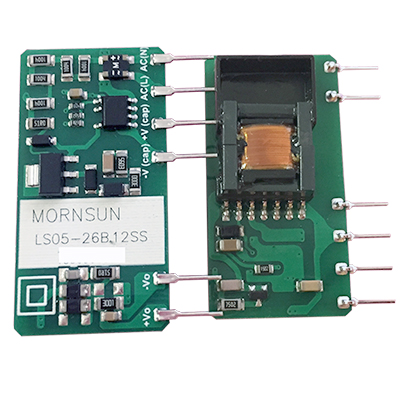

 | 0658-0037-4 | LS05-26B12SS | 60 | 228.60 |  | PB-Free | RoHS | MORNSUN | AC-DC Converter 5W,Output 12V/420mA Input Voltage 90 - 528VAC/100 - 745VDC Output Shot Circuit,Over Current Protection | 12V | 0.42A | 90-528VAC (100-745VDC) | 5W | - | -40°C to +85°C | 1 | Module | 44.5 x 13 x 24 mm |
 | 0658-0044-1 | LO65-10B24 | 11 | 389.10 | | PB-Free | RoHS | MORNSUN | AC-DC Converter 65W, Nominal Output 24V/2.71A, Input Voltage Range 85 - 264VAC/100 - 370VDC, Regulated Output, Low Ripple and Noise | 24V | 2.71A | 85-264VAC (100-370VDC) | 65W | - | -25°C to +70°C | 1 | Open Frame | 76.2 x 50.8 x 30 mm |

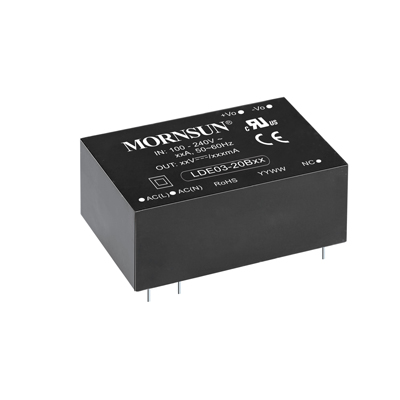

 | 0658-0053-2 | LDE03-20B12 | 4 | 157.60 | | PB-Free | RoHS | MORNSUN | AC-DC Converter 3W, Nominal Output 12V/250mA, Input Voltage Range 85-264VAC/100-370VDC, Switching Frequency 100 KHz | 12V | 0.25A | 85-264VAC (100-370VDC) | 3W | - | -40°C to +70°C | 1 | Module | 37 x 24.5 x 18 mm |

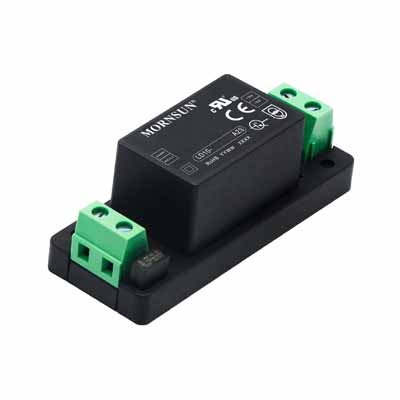

 | 0658-0060-9 | LD10-23B05R2A2S | 145 | 288.00 | | PB-Free | RoHS | MORNSUN | AC-DC Converter 10W, Nominal Output 5V/2000mA, Input Voltage Range 85-305VAC/100-430VDC, Switching Frequency 65 KHz, Chassis Mounting | 5V | 2A | 85-305VAC (100-430VDC) | 10W | - | -40°C to +85°C | 1 | Chassis Mount | 76 x 31.5 x 29.8 mm |

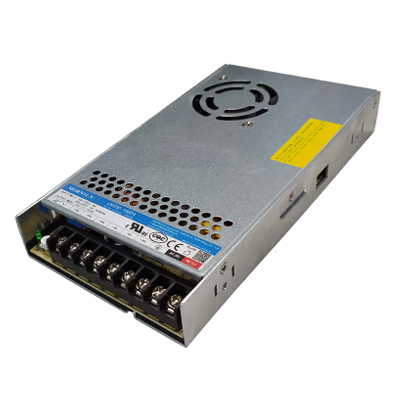

 | 0658-0075-2 | LM350-10B12 | 50 | 964.60 | | PB-Free | RoHS | MORNSUN | AC/DC 348W Enclosed Switching Power Supply, Output 12V/29A, Input 90-132Vac/180-264Vac or 240-370Vdc (Selectable by Switch), Built-in DC Fan | 12V | 29A | 90-132VAC,180-264VAC (240-370VDC) | 348W | - | -30°C to +70°C | 1 | Chassis Mount | 215 x 115 x 30 mm |

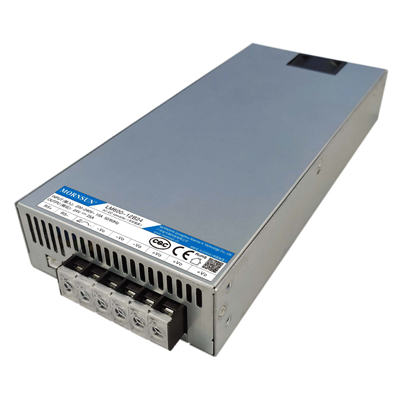

 | 0658-0077-6 | LM600-12B12 | 5 | 1,736.00 | | PB-Free | RoHS | MORNSUN | AC/DC 600W Enclosed Switching Power Supply, Output 12V/50A, Input 176 - 264Vac or 240 - 370Vdc Built-in DC Fan, Remote Sense Function | 12V | 50A | 176-264VAC (240-370VDC) | 600W | Remote Sense | -20°C to +60°C | 1 | Chassis Mount | 267.3 x 106 x 40 mm |
| 0658-0078-8 | LM600-12B24 | 0 | 1,736.00 | | PB-Free | RoHS | MORNSUN | AC/DC 600W Enclosed Switching Power Supply, Output 24V/25A, Input 176 - 264Vac or 240 - 370Vdc Built-in DC Fan, Remote Sense Function | 24V | 25A | 176-264VAC (240-370VDC) | 600W | Remote Sense | -20°C to +60°C | 1 | Chassis Mount | 267.3 x 106 x 40 mm |

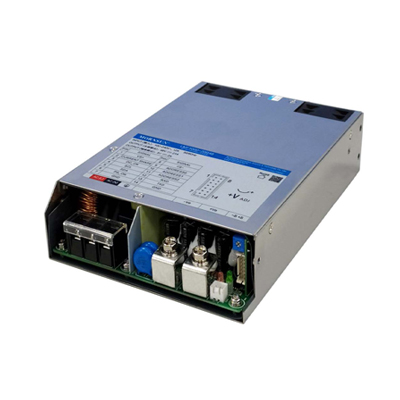

 | 0658-0079-1 | LMF1000-20B12 | 5 | 5,488.00 | | PB-Free | RoHS | MORNSUN | AC/DC Enclosed Switching Power Supply, Built-in Signal Terminal, Main Output 960W(12V/80A) and Auxiliary Output 10W(5V/2A), Fan Speed Control | 12V/5V | 80A/2A | 90-264VAC (120-370VDC) | 970W | Remote Sense,Monitoring Signal Output | -40°C to +70°C | 2 | Chassis Mount | 190 x 127 x 40.5 mm |
| 0658-0080-5 | LMF1000-20B24 | 8 | 5,717.00 | | PB-Free | RoHS | MORNSUN | AC/DC Enclosed Switching Power Supply, Built-in Signal Terminal, Main Output 1008W(24V/42A) and Auxiliary Output 10W(5V/2A), Fan Speed Control | 24V/5V | 42A/2A | 90-264VAC (120-370VDC) | 1018W | Remote Sense,Monitoring Signal Output | -40°C to +70°C | 2 | Chassis Mount | 190 x 127 x 40.5 mm |

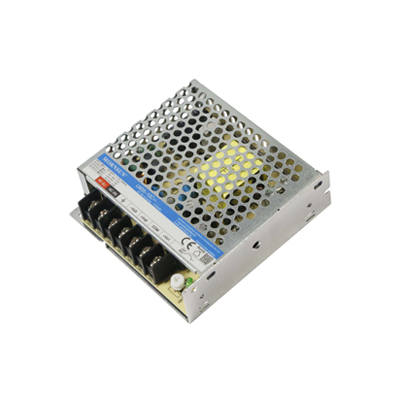

 | 0658-0081-7 | LM35-10C052412-05 | 52 | 563.70 | | PB-Free | RoHS | MORNSUN | AC/DC 36.5W Enclosed Switching Power Supply, Nominal Output 5V/2.5A 24V/0.5A and 12V/1.0A, Input 85 - 264Vac or 120 - 373Vdc, Efficiency 81% | 5V/24V/12V | 2.5A/0.5A/1A | 85-264VAC (120-373VDC) | 36.5W | - | -30°C to +70°C | 3 | Chassis Mount | 99 x 97 x 30 mm |

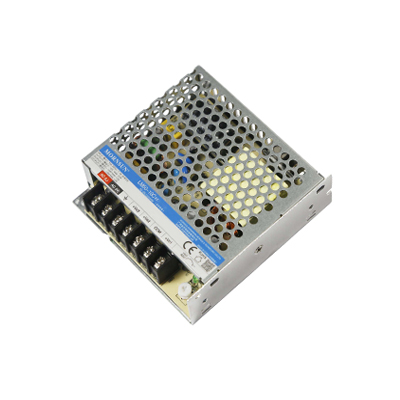

 | 0658-0082-9 | LM50-10C052412-10 | 48 | 558.90 | | PB-Free | RoHS | MORNSUN | AC/DC 51W Enclosed Switching Power Supply, Nominal Output 5V/3.0A 24V/1.0A and 12V/1.0A, Input 85 - 264Vac or 120 - 373Vdc, Efficiency 85% | 5V/24V/12V | 3A/1A/1A | 85-264VAC (120-373VDC) | 51W | - | -30°C to +70°C | 3 | Chassis Mount | 99 x 97 x 30 mm |

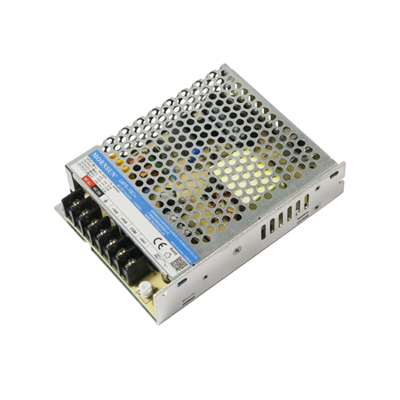

 | 0658-0083-1 | LM75-10C052412-15 | 27 | 702.00 | | PB-Free | RoHS | MORNSUN | AC/DC 73W Enclosed Switching Power Supply, Nominal Output 5V/5.0A 24V/1.5A and 12V/1.0A, Input 90 - 264Vac or 120 - 370Vdc, Efficiency 84% | 5V/24V/12V | 5A/1.5A/1A | 90-264VAC (120-370VDC) | 73W | - | -30°C to +70°C | 3 | Chassis Mount | 129 x 97 x 30 mm |

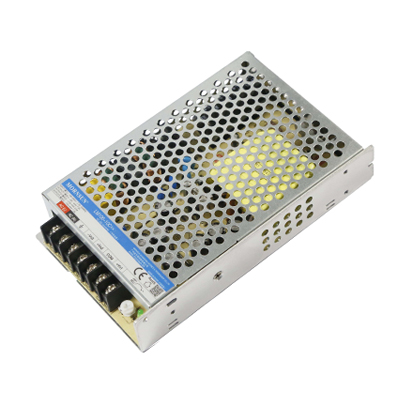

 | 0658-0084-3 | LM100-10C052412-20 | 17 | 841.70 | | PB-Free | RoHS | MORNSUN | AC/DC 96W Enclosed Switching Power Supply, Nominal Output 5V/6.0A 24V/2.0A and 12V/1.5A, Input 90 - 264Vac or 120 - 370Vdc, Efficiency 85% | 5V/24V/12V | 6A/2A/1.5A | 90-264VAC (120-370VDC) | 96W | - | -30°C to +70°C | 3 | Chassis Mount | 159 x 97 x 30 mm |

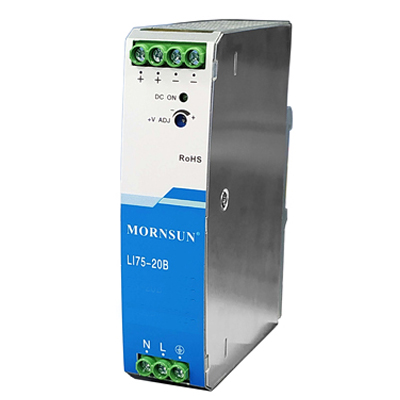

 | 0658-0085-5 | LI75-20B24R2S | 7 | 723.10 | | PB-Free | RoHS | MORNSUN | AC/DC 76.8W Enclosed Switching Power Supply, DIN-Rail Mount, Nominal Output 24V/3.2A, Adjust Range 24-28V, Input Voltage 90-264VAC/120-370VDC | 24V | 3.2A | 90-264VAC (120-370VDC) | 76.8W | - | -30°C to +70°C | 1 | Din Rail | 125 x 32 x 87.5 mm |

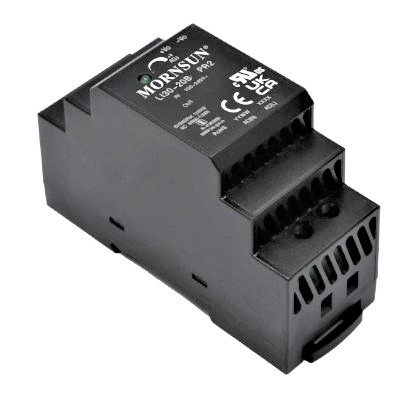

 | 0658-0089-3 | LI30-20B24PR2 | 8 | 483.10 | | PB-Free | RoHS | MORNSUN | AC/DC 36W DIN-Rail Power Supply, Nominal Output 24V/1.5A, Output Voltage Adjustable Range 21.6-29.0V, Input Voltage 85-264VAC/120-370VDC | 24V | 1.5A | 85-264VAC (120-370VDC) | 36W | - | -40°C to +70°C | 1 | Din Rail | 90 x 35 x 58 mm |
