| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Type | For Use with Fuse Size | Voltage | Current Rating | Mounting Type | Vendor |
| | | | | | | | | | | | | | |
 | 1038-0056-5 | CHPV2IU | 15 | 1,301.00 |  | PB-Free | RoHS | CH Modular, IP20 Finger-Safe DIN-Rail Holders for Class CC,Supplemental and PV Fuse,2-Pole, With Indicator,For Midget Fuse,1000Vdc/30A | Fuse Holder | 10 x 38mm | 1000V | 30A | Din-Rail | EATON BUSSMANN |
 | 1038-0057-7 | CHPV1IU | 1 | 623.10 | | PB-Free | RoHS | CH Modular, IP20 Finger-Safe DIN-Rail Holders for Class CC,Supplemental and PV Fuse,1-Pole, With Indicator,For Midget Fuse,1000Vdc/30A | Fuse Holder | 10 x 38mm | 1000V | 30A | Din-Rail | EATON BUSSMANN |

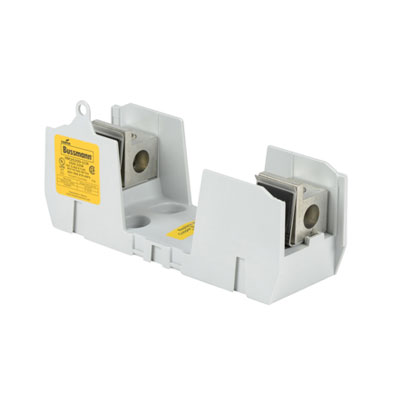

 | 1038-0069-4 | RM25200-1CR | 0 | 3,817.00 | | PB-Free | RoHS | Modular Knifeblade Fuse Block,Class R,1 Pole, 250V/110-200A | Fuse Holder | 4.1 x 18.1mm | 250V | 110A-200A | Panel Mount | EATON BUSSMANN |
 | 1038-0088-8 | CHCC1DU | 81 | 486.50 | | PB-Free | RoHS | CH Modular IP20 Finger-Safe DIN-Rail Fuse Holder for Class CC,Supplemental Fuses,1 Pole,600Vac/30A, Size 10mm x 38mm | Fuse Holder | 10 x 38mm | 600V | 30A | Din-Rail | EATON BUSSMANN |
 | 1038-0089-1 | CHCC2DU | 36 | 810.80 | | PB-Free | RoHS | CH Modular IP20 Finger-Safe DIN-Rail Fuse Holder for Class CC,Supplemental Fuses,2 Poles,600Vac/30A Size 10mm x 38mm | Fuse Holder | 10 x 38mm | 600V | 30A | Din-Rail | EATON BUSSMANN |
 | 1038-0091-7 | EBH2O3TM1 | 11 | 5,778.00 | | PB-Free | RoHS | Size 2 Horizontal Fuse Switch Disconnector, for NH2 Fuse, 690V/400A, 3-Pole, Mounting Plate Type, V Clamps, M10 Screws | Fuse Disconnector | 53 x 75 x 61mm | 690V | 400A | Panel Mount | EATON BUSSMANN |
 | 1038-0092-9 | EBH3O3TM2 | 6 | 8,057.00 | | PB-Free | RoHS | NH Fuse Base, Switch Disconnector, for NH3 Fuses, 3 Poles, 630A/690Vac, Plate Mounting, Connection of Conductors with Lug Terminals, M12 Screws | Fuse Disconnector | 70 x 75 x 75mm | 690V | 630A | Panel Mount | EATON BUSSMANN |
 | 1038-0095-5 | B221-30F | 10 | 1,234.00 | | PB-Free | RoHS | Fused Pullout HVAC Disconnects, 30A, For use with Conductor Size AWG 14-3 Cu/Al,Enclosure: Metallic NEMA 3R Housing with Weather Resistance Coating | Fuse Disconnector | 14.2 x 50.8mm | 240V | 30A | Panel Mount | EATON BUSSMANN |
 | 1038-0096-7 | B222-60F | 10 | 1,266.00 | | PB-Free | RoHS | Fused Pullout HVAC Disconnects, 60A, For use with Conductor Size AWG 14-3 Cu/Al,Enclosure: Metallic NEMA 3R Housing with Weather Resistance Coating | Fuse Disconnector | 20.5 x 76.2mm | 240V | 60A | Panel Mount | EATON BUSSMANN |
 | 1038-0102-6 | EHCC2DU | 60 | 489.40 | | PB-Free | RoHS | EH Modular Din Rail Fuse Holders for Class CC, Supplemental Fuses,2 Poles,Rating 600V/30A, Size 10mm x 38mm | Fuse Holder | 10 x 38mm | 600V | 30A | Din-Rail | EATON BUSSMANN |
 | 1038-0109-1 | A3354705 | 2 | 192.30 | | PB-Free | RoHS | Fuse Clip for 25.4mm Voltage Transformer and Auxiliary Type Fuse Link, Material: Nickel Silver (Required 2 Pieces per Fuse) | Fuse Clips | 25.4mm | - | - | Panel Mount | EATON BUSSMANN |
 | 1038-0155-7 | CHPV15L85 | 21 | 301.50 | | PB-Free | RoHS | Fuse Holder 1500Vdc/32A, 1 Pole, Suitable for use with 10 x 85mm and 14 x 85mm Cylindrical gPV Fuse Links, Mounting on 35 mm DIN-Rail | Fuse Holder | 10 x 85mm,14 x 85mm | 1500V | 32A | Din-Rail | EATON BUSSMANN |
 | 1038-0241-1 | JM60060-3CR | 6 | 1,668.00 | | PB-Free | RoHS | Class J Modular Ferrule Fuse Blocks, 3 Pole, 600V/35 - 60A, Box Lug/Slot Screw Terminal Type | Fuse Holder | 27 x 60mm | 600V | 35A-60A | Din-Rail | EATON BUSSMANN |
 | 1038-0242-2 | JM60400-1CR | 6 | 4,345.00 | | PB-Free | RoHS | Class J Modular Knifeblade Fuse Block, 1 Pole, 600V/225 - 400A, Panel Mount | Fuse Holder | 54 x 181mm | 600V | 225A-400A | Panel Mount | EATON BUSSMANN |
 | 1038-0247-2 | EHCC1DU | 199 | 337.20 | | PB-Free | RoHS | EH Modular Din Rail Fuse Holder for Class CC, 1 Pole, Rating 600V/30A, Without Indicator, For Use with Fuses EDCC, HCLR and HCTR Series | Fuse Holder | 10 x 38mm | 600V | 30A | Din-Rail | EATON BUSSMANN |
