| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Case Style | Built-in Fast Recovery Diode(FRD) | Collector Current (Ic) Max. at 25(C) | Collector-Emitter Breakdown Voltage Max. | VGE(th) | VCE(sat) Max. | Package / Case | Mounting Type | MFR Package | Packaging |
| | | | | | | | | | | | | | | | | | | |
 | 0123-0096-0 | HGTG30N60C3D | 2 | 229.50 |  | PB-Free | RoHS | N-Channel IGBT with Anti-Parallel Hyperfast Diodes Collector Current 63A,Collector to Emitter Voltage 600V, Gate to Emitter Threshold Voltage 5.2 V | ONSEMI / FAIRCHILD | TO-247,264,3P | Built-in FRD | 63A | 600V | 3 - 6V @250uA | 1.8V | TO-247-3 | Through Hole | TO-247-3 | TUBE |
 | 0123-0414-2 | HGTG20N60B3D_NL | 3 | 168.10 | | PB-Free | RoHS | IGBT UFS Series N-Channel 40A/600V with Anti-Parallel Hyperfast Diode | ONSEMI / FAIRCHILD | TO-247,264,3P | Built-in FRD | 40A | 600V | 3 - 6V @250uA | 2V | TO-247-3 | Through Hole | TO-247-3 | TUBE |
| 0123-0605-1 | HGTG40N60A4 | 179 | 285.00 | | PB-Free | RoHS | IGBT N-Channel 600V/75A SMPS Series | ONSEMI / FAIRCHILD | TO-247,264,3P | Not Built-in FRD | 75A | 600V | 4.5 - 7V @250uA | 2.7V | TO-247-3 | Through Hole | TO-247-3 | TUBE |
 | 0129-0056-6 | IRG4PH40UDPBF | 0 | 402.90 | | PB-Free | RoHS | Insulate Gate Bipolar Transistor, N-CH 1200V/ 41A | IR/INFINEON/VISHAY | TO-247,264,3P | Built-in FRD | 41A | 1200V | 3 - 6V @250uA | 3.1V | TO-247-3 | Through Hole | TO-247-3 | TUBE |
| 0129-0109-0 | IRG4PH50KPBF | 0 | 162.80 | | PB-Free | RoHS | Short Circuit Rated Ultra Fast IGBT 1200V/45A | IR/INFINEON/VISHAY | TO-247,264,3P | Not Built-in FRD | 45A | 1200V | 3 - 6V @250uA | 3.5V | TO-247-3 | Through Hole | TO-247-3 | TUBE |

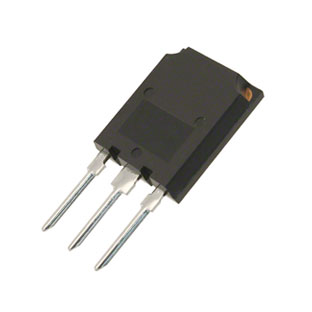

 | 0129-0129-8 | IRG4PSC71UDPBF | 2 | 259.10 | | PB-Free | | IGBT with Ultrafast Soft Recovery Diode 600V/85A | IR/INFINEON/VISHAY | TO-247,264,3P | Built-in FRD | 85A | 600V | 3 - 6V @250uA | 2V | SUPER-247 | Through Hole | SUPER-247 | TUBE |

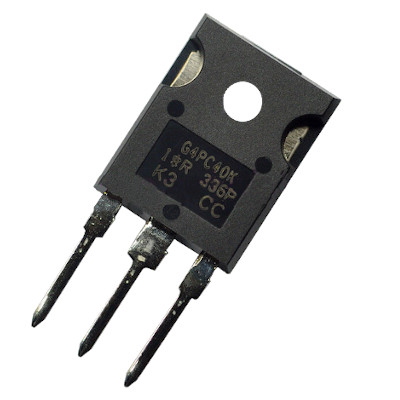

 | 0129-0167-8 | IRG4PC40KPBF | 0 | 97.81 | | PB-Free | RoHS | Short Circuit Rated UltraFast IGBT 42A/ 600V, Generation 4 IGBTs | IR/INFINEON/VISHAY | TO-247,264,3P | Not Built-in FRD | 42A | 600V | 3 - 6V @250uA | 2.6V | TO-247-3 | Through Hole | TO-247AC | TUBE |
| 0136-0376-1 | KGF75N60KDB | 1,326 | 100.00 | | PB-Free | RoHS | Field Stop Trench IGBT 600V/100A,357W, Short Circuit Withstand Times is more than 10us | KEC | TO-247,264,3P | Built-in FRD | 100A | 600V | 5 - 7.5V @7.5mA | 1.8V | TO-247-3 | Through Hole | TO-247 | TUBE |
| 0176-0958-6 | RGT60TS65DGC11 | 0 | 53.90 | | PB-Free | RoHS | Field Stop Trench IGBT 650V/55A,194W Low Switching Loss | ROHM | TO-247,264,3P | Built-in FRD | 55A | 650V | 5 - 7V @21mA | 2.1V | TO-247-3 | Through Hole | TO-247 | TUBE |
| 0176-0960-6 | RGT80TS65DGC11 | 636 | 59.09 | | PB-Free | RoHS | Field Stop Trench IGBT 650V/70A,234W Low Switching Loss | ROHM | TO-247,264,3P | Built-in FRD | 70A | 650V | 5 - 7V @27.6mA | 2.1V | TO-247-3 | Through Hole | TO-247 | TUBE |
| 0176-0961-9 | RGTH60TS65GC11 | 5,835 | 47.82 | | PB-Free | RoHS | Field Stop Trench IGBT 650V/58A,194W High Speed Switching,Low Switching Loss and Soft Switching | ROHM | TO-247,264,3P | Not Built-in FRD | 58A | 650V | 4.5 - 6.5V @21mA | 2.1V | TO-247-3 | Through Hole | TO-247 | TUBE |
| 0176-0962-2 | RGT00TS65DGC11 | 1,077 | 56.41 | | PB-Free | RoHS | Field Stop Trench IGBT 650V/85A,277W Low Switching Loss | ROHM | TO-247,264,3P | Built-in FRD | 85A | 650V | 5 - 7V @34.7mA | 2.1V | TO-247-3 | Through Hole | TO-247 | TUBE |
| 0176-1017-8 | RGCL60TS60DGC11 | 881 | 46.86 | | PB-Free | RoHS | Field Stop Trench IGBT 600V/48A, Power Dissipation 111W, Built-in Very Fast and Soft Recovery FRD, Soft Switching | ROHM | TO-247,264,3P | Built-in FRD | 48A | 600V | 4.5 - 6.5V @18.9mA | 1.8V | TO-247-3 | Through Hole | TO-247N | TUBE |
| 0176-1018-1 | RGCL80TS60DGC11 | 2,581 | 48.53 | | PB-Free | RoHS | Field Stop Trench IGBT 600V/65A,148W Soft Switching | ROHM | TO-247,264,3P | Built-in FRD | 65A | 600V | 4.5 - 6.5V @30mA | 1.8V | TO-247-3 | Through Hole | TO-247-3 | TUBE |
| 0176-1033-3 | RGTH00TS65DGC11 | 18 | 67.64 | | PB-Free | RoHS | Field Stop Trench IGBT 650V/85A,277W Built in Very Fast and Soft Recovery FRD | ROHM | TO-247,264,3P | Built-in FRD | 85A | 650V | 4.5 - 6.5V @34.7mA | 2.1V | TO-247-3 | Through Hole | TO-247-3 | TUBE |
