| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Case Style | Number of Rectifiers | Common Pin Configuration | Average Forward Current | Reverse Voltage (Vr) | Speed (trr) Typ. | Power | Package / Case | Mounting Type | Packaging | Mfr Package |
| | | | | | | | | | | | | | | | | | | | |

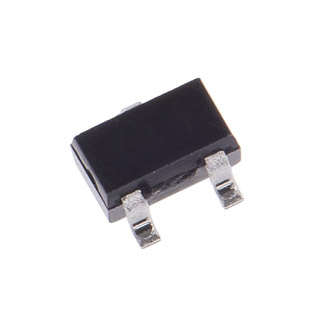

 | 0016-0128-7 | BAV99W,115 | 19,275 | 1.14 |  | PB-Free | RoHS | High-Speed Switching Double Diodes 100V/150mA trr 4ns | NXP/NEXPERIA/WEEN | SOT-23,323,346,363,416,457 | Dual | Series Connection | 150mA | 100V | 4ns | 200mW | SOT-323 | Surface Mount | TAPE & REEL | SOT-323 |
 | 0016-0192-7 | BAV99,215 | 627 | 0.59 | | PB-Free | RoHS | High-Speed Switching Double Diodes 100V/215mA trr 4ns | NXP/NEXPERIA/WEEN | SOT-23,323,346,363,416,457 | Dual | Series Connection | 215mA | 100V | 4ns | 250mW | SOT-23-3 (SOT-346) | Surface Mount | TAPE & REEL | SOT-23 |
 | 0016-0201-3 | PMLL4148L,115 | 1,281 | 0.90 | | PB-Free | RoHS | High Speed Switching Diodes 75V/200mA (Repetitive Peak Reverse Voltage 100V Max) trr 4ns | NXP/NEXPERIA/WEEN | SOD80 | Single | - | 200mA | 75V | 4ns | 500mW | SOD80/MINIMELF | Surface Mount | TAPE & REEL | SOD80/MINIMELF |
| 0016-0202-6 | BAV70,215 | 589 | 0.69 | | PB-Free | RoHS | High-Speed Switching Diodes 100V/215mA trr 4ns | NXP/NEXPERIA/WEEN | SOT-23,323,346,363,416,457 | Dual | Common Cathode | 215mA | 100V | 4ns | 250mW | SOT-23-3 (SOT-346) | Surface Mount | TAPE & REEL | SOT-23 |
 | 0016-0241-9 | BAV20,133 | 30,843 | 1.05 | | PB-Free | | Diode Switching, Continuous Peak Reverse Voltage 150V Max, 250mA, trr 50ns (Repetitive Peak Reverse Voltage 200V Max) | NXP/NEXPERIA/WEEN | AXIAL LEAD | Single | - | 250mA | 150V | 50ns | 400mW | DO-35 (DO-204AH) | Through Hole | TAPE AMMO PACK | DO-35 |

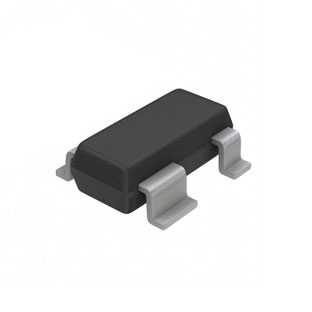

 | 0016-0255-5 | BAV23,215 | 18,182 | 2.48 | | PB-Free | | Switching Diodes 200V/225mA, trr 50ns (Repetitive Peak Reverse Voltage 250V MAX) | NXP/NEXPERIA/WEEN | SOT-23,323,346,363,416,457 | Dual | - | 225mA | 200V | 50ns | 250mW | SOT-143 (TO-253) | Surface Mount | TAPE & REEL | SOT-143B (TO-253) |
| 0016-0367-7 | PMLL4448,115 | 7,830 | 0.92 | | PB-Free | RoHS | High Speed Switching Diodes 75V/200mA, trr 4ns (Repetitive Peak Reverse Voltage 100V Max.) | NXP/NEXPERIA/WEEN | SOD80 | Single | - | 200mA | 75V | 4ns | 500mW | SOD80/MINIMELF | Surface Mount | TAPE & REEL | SOD80C |
 | 0087-0249-6 | 1SS352,H3F(T | 18,003 | 0.99 | | PB-Free | RoHS | High Speed Switching Diode 80V/100mA trr 1.6ns | TOSHIBA | SOD-123,128,323,523 | Single | - | 100mA | 80V | 1.6ns | 200mW | SOD-323 | Surface Mount | TAPE & REEL | SOD-323 |
| 0087-0358-1 | BAS316,H3F(T | 305 | 0.92 | | PB-Free | RoHS | High-Speed Switching Diode 100V/250mA trr 3ns | TOSHIBA | SOD-123,128,323,523 | Single | - | 250mA | 100V | 3ns | 230mW | SOD-323 | Surface Mount | TAPE & REEL | SOD-323 |
 | 0087-0488-4 | 1SS181,LF(T | 164,140 | 0.78 | | PB-Free | RoHS | Ultra High Speed Switching Diode 80V/100mA trr 1.6ns | TOSHIBA | SOT-23,323,346,363,416,457 | Dual | Common Anode | 100mA | 80V | 1.6ns | 200mW | SOT-23-3 (SOT-346) | Surface Mount | TAPE & REEL | SC-59 |
| 0087-0493-7 | 1SS184,LF(T | 368,360 | 0.76 | | PB-Free | RoHS | Ultra High Speed Switching Diode 80V/100mA trr 1.6ns | TOSHIBA | SOT-23,323,346,363,416,457 | Dual | Common Cathode | 100mA | 80V | 1.6ns | 200mW | SOT-23-3 (SOT-346) | Surface Mount | TAPE & REEL | SC-59 |
| 0123-0001-9 | 1N4148TA | 32,016 | 0.47 | | PB-Free | RoHS | Small Signal Diode 100V/200mA | ONSEMI / FAIRCHILD | AXIAL LEAD | Single | - | 200mA | 100V | 4ns | 500mW | DO-35 (DO-204AH) | Through Hole | TAPE AMMO PACK | DO-35 |
| 0123-0486-6 | FDLL4148 | 65,379 | 0.60 | | PB-Free | RoHS | Diode High Conductance 100V/200mA trr 4ns | ONSEMI / FAIRCHILD | SOD80 | Single | - | 200mA | 100V | 4ns | 500mW | SOD80/MINIMELF | Surface Mount | TAPE & REEL | SOD80/MINIMELF |

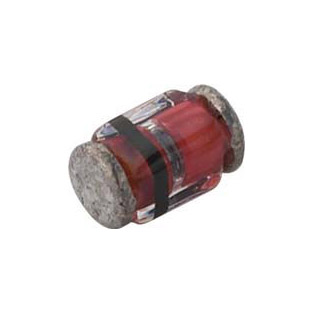

 | 0135-0056-6 | MCL4148-TR | 1 | 1.16 | | PB-Free | RoHS | Silicon Epitaxial Planar Diodes 75V/200mA | VISHAY | SOD80 | Single | - | 150mA | 75V | 4ns | 500mW | SOD80/MICROMELF | Surface Mount | TAPE & REEL | SOD80/MICROMELF |

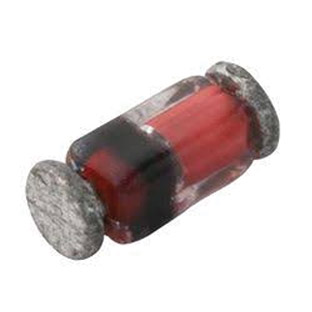

 | 0135-0063-1 | LS4148-GS08 | 62,003 | 1.03 | | PB-Free | | Fast Switching Diode 75V/300mA | VISHAY | SOD80 | Single | - | 150mA | 75V | 4ns | 500mW | SOD80/QUADROMELF | Surface Mount | TAPE & REEL | SOD80/QUADROMELF |
