| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Vendor | Capacitance | Tolerance | Voltage-Rated | Endurance (Hours) | Series | Lead Spacing | Diameter x Height(mm) |
| | | | | | | | | | | | | | | | |
 | 0289-0023-2 | UPJ1E102MHD6 | 2,020 | 18.44 |  | PB-Free | RoHS | E-CAP PJ Series 1000μF/25VDC -55°C to +105°C ±20%,5000hrs. Low Impedance, For Switching Power Supplies | NICHICON | 1000μF | ±20% | 25V | 5000 | PJ,Low Impedance 105°C,5000hrs | 7.5mm | 18x15 |
 | 0289-0032-3 | UWT1V100MCL1GB | 8,636 | 2.52 | | PB-Free | RoHS | E-Cap WT Series 10μF/35Volt -55°C to +105°C,±20%,1000hrs. Chip Type,Wide Temperature Range | NICHICON | 10μF | ±20% | 35V | 1000 | WT,Chip Type/Wide Temperature range 105°C,1000hrs | 1.3mm | 5x5.4 |
 | 0289-0035-2 | UPS1H221MPD | 280 | 7.14 | | PB-Free | RoHS | E-Cap PS Series 220μF/50Volt -55°C to +105°C, ±20%,2000hrs. Low Impedance,For Switching Power Supplies | NICHICON | 220μF | ±20% | 50V | 2000 | UPS,Miniature Sized 105°C,2000/3000hrs | 5.0mm | 10x16 |
 | 0289-0037-8 | UWT1V470MCL1GS | 8,484 | 2.82 | | PB-Free | RoHS | E-Cap WT Series 47μF/35Volt -55°C to +105°C,±20%,1000hrs. Chip Type | NICHICON | 47μF | ±20% | 35V | 1000 | WT,Chip Type/Wide Temperature range 105°C,1000hrs | 2.2mm | 6.3x5.8 |
 | 0289-0052-1 | UPM0J332MHD | 880 | 14.85 | | PB-Free | | E-Cap PM Series 3300μF/6.3Volt -55°C to +105°C,±20%,5000hrs. Extremely Low Impedance,High Reliability | NICHICON | 3300μF | ±20% | 6.3V | 5000 | PM,Extremely Low Impedance 105°C,2000-5000hrs | 5.0mm | 12.5x25 |
| 0289-0065-4 | UPM1V561MHD | 467 | 11.51 | | PB-Free | RoHS | E-Cap PM Series 560μF/35Volt -55°C to +105°C,±20%,5000hrs. Extremely Low Impedance,High Reliability | NICHICON | 560μF | ±20% | 35V | 5000 | PM,Extremely Low Impedance 105°C,2000-5000hrs | 5.0mm | 12.5x20 |
 | 0289-0071-6 | LLS2G121MELZ | 1,523 | 48.26 | | PB-Free | RoHS | E-Cap LS Series 120μF/400Volt -25°C to +85°C,±20%,3000hrs. Snap-In Type,Standard | NICHICON | 120μF | ±20% | 400V | 3000 | LS,Snap-in teminal type 85°C,3000hrs | 10.0mm | 22x30 |
 | 0289-0076-1 | UPW1E101MED | 1 | 3.72 | | PB-Free | RoHS | E-Cap PW Series 100μF/25Volt,-55°C to +105°C, ±20%,2000hrs,Miniature Sized, Low Impedance,High reliability | NICHICON | 100μF | ±20% | 25V | 2000 | PW,Low Impedance 105°C,2000-8000hrs | 2.5mm | 6.3x11 |
 | 0289-0078-7 | UPW1V102MHD | 1,244 | 16.42 | | PB-Free | RoHS | E-Cap PW Series 1000μF/35V,±20% -55°C to +105°C,7000hrs, Miniature Sized,Low Impedance,High reliability | NICHICON | 1000μF | ±20% | 35V | 7000 | PW,Low Impedance 105°C,2000-8000hrs | 5.0mm | 12.5x25 |

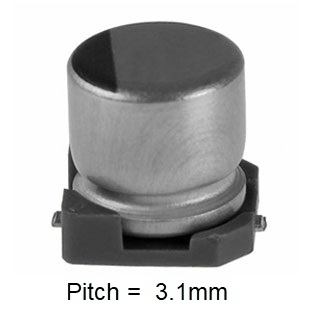

 | 0289-0081-0 | UWT0J471MNL1GS | 22,365 | 7.56 | | PB-Free | | E-Cap WT Series 470μF/6.3Volt -55°C to +105°C,±20%,1000hrs. Chip Type | NICHICON | 470μF | ±20% | 6.3V | 1000 | WT,Chip Type/Wide Temperature range 105°C,1000hrs | 3.1mm | 8x10 |
| 0289-0083-6 | UWT1C220MCL1GB | 2,758 | 3.19 | | PB-Free | | E-Cap WT Series 22μF/16Volt -55°C to +105°C,±20%,1000hrs. Chip Type | NICHICON | 22μF | ±20% | 16V | 1000 | WT,Chip Type/Wide Temperature range 105°C,1000hrs | 1.3mm | 5x5.4 |
 | 0289-0096-9 | UWT1C101MCL1GB | 8,685 | 3.50 | | PB-Free | | E-Cap WT Series 100μF/16Volt -55°C to +105°C,±20%,1000hrs. Chip Type | NICHICON | 100μF | ±20% | 16V | 1000 | WT,Chip Type/Wide Temperature range 105°C,1000hrs | 2.2mm | 6.3x5.4 |

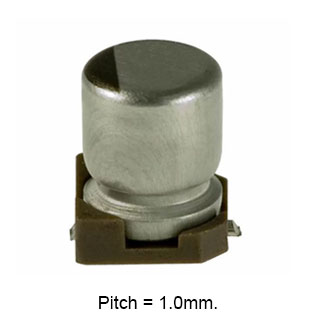

 | 0289-0111-7 | UWX0J220MCL1GB | 2 | 1.22 | | PB-Free | | E-Cap WX Series 22μF/6.3Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 22μF | ±20% | 6.3V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.0mm | 4x5.5 |
| 0289-0113-3 | UWX0J470MCL1GB | 2,126 | 2.36 | | PB-Free | | E-Cap WX Series 47μF/6.3Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 47μF | ±20% | 6.3V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 1.3mm | 5x5.5 |

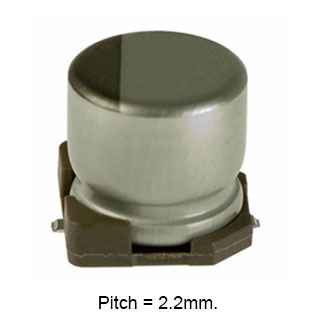

 | 0289-0114-6 | UWX0J101MCL1GB | 871 | 2.46 | | PB-Free | | E-Cap WX Series 100μF/6.3Volt -40°C to +85°C,±20%,2000hrs. Chip Type with 5.5mm Height | NICHICON | 100μF | ±20% | 6.3V | 2000 | WX,Chip type with 5.5mm height 85°C,2000hrs | 2.2mm | 6.3x5.5 |
