| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Coil Voltage | Contact Rating | Switch Function | Operating Function | Series | Dimension (WxDxH) | Mounting | Vendor | Packaging |
| | | | | | | | | | | | | | | | | |
 | 0181-0003-9 | HRS4H-S-DC12V-C | 39,082 | 17.23 |  | PB-Free | RoHS | Relay Coil 12VDC, 1 Form C (SPDT), Black Cover Contact Rating 10A 120VAC/24VDC, 10A/6A 250VAC High Sensitivity | 12VDC | 10A | SPDT (1 Form C) | Non-Latching Type | HRS4 | 12.0 x 19.0 x 15.8mm | PCB Through Hole | HKE | TUBE |
| 0181-0004-2 | HRS4H-S-DC24V-C | 16,394 | 20.58 | | PB-Free | RoHS | Relay Coil 24VDC, 1 Form C (SPDT), Black Cover Contact Rating 10A,120VAC/24VDC, 10A/6A 250VAC High Sensitivity | 24VDC | 10A | SPDT (1 Form C) | Non-Latching Type | HRS4 | 12.0 x 19.0 x 15.8mm | PCB Through Hole | HKE | TUBE |
| 0181-0005-5 | HRS4H-S-DC6V-C | 2,626 | 20.62 | | PB-Free | RoHS | Relay Coil 6 VDC, 1 Form C (SPDT) Contact Rating 10A, 120VAC/24VDC, 10A/6A 250VAC High Sensitivity | 6VDC | 10A | SPDT (1 Form C) | Non-Latching Type | HRS4 | 12.0 x 19.0 x 15.8mm | PCB Through Hole | HKE | TUBE |

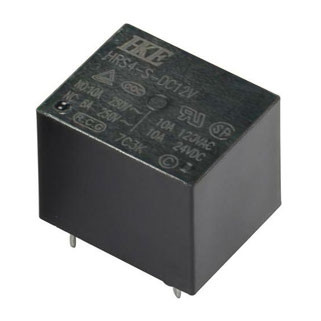

 | 0181-0006-8 | HRS4-S-DC12V-C | 49,936 | 19.80 | | PB-Free | RoHS | Relay Coil 12 VDC, 1 Form C (SPDT), Standard Coil Contact Rating 10A, 120VAC/24VDC, 10A/6A 250VAC | 12VDC | 10A | SPDT (1 Form C) | Non-Latching Type | HRS4 | 12.0 x 19.0 x 15.8mm | PCB Through Hole | HKE | TUBE |
| 0181-0016-2 | HRS4H-S-DC3V-C | 3,242 | 20.20 | | PB-Free | RoHS | Relay Coil 3VDC, 1 Form C ( SPDT), Black Cover Contact Rating 10A 120VC/24VDC, 10A/ 6A 250VAC High Sensitivity | 3VDC | 10A | SPDT (1 Form C) | Non-Latching Type | HRS4 | 12.0 x 19.0 x 15.8mm | PCB Through Hole | HKE | TUBE |
 | 0181-0024-0 | CMP7-S-DC12V-A-R | 21,341 | 39.27 | | PB-Free | | Relay Coil 12VDC, 1 Form A (SPST) Contact Rating 30A 240VAC/24VDC Washable Enclosure | 12VDC | 30A | SPST (1 Form A) | Non-Latching Type | CMP7 | 27.4 x 31.8 x 20.1mm | PCB Through Hole | HKE | TRAY |
| 0181-0027-9 | HRS4H-S-DC5V-C | 8,870 | 21.23 | | PB-Free | RoHS | Relay Coil 5VDC, 1 Form C (SPDT) Contact Rating 10A 120VC/24VDC, 10A/ 6A 250VAC High Sensitivity, Black Cover | 5VDC | 10A | SPDT (1 Form C) | Non-Latching Type | HRS4 | 12.0 x 19.0 x 15.8mm | PCB Through Hole | HKE | TUBE |
| 0181-0028-2 | HRS4-S-DC5V-C | 5,004 | 20.94 | | PB-Free | RoHS | Relay Coil 5VDC, 1 Form C (SPDT), Standard Coil Contact Rating 10A 120VC/24VDC,10A/ 6A 250VAC Plastic Sealed Enclosure | 5VDC | 10A | SPDT (1 Form C) | Non-Latching Type | HRS4 | 12.0 x 19.0 x 15.8mm | PCB Through Hole | HKE | TUBE |
