| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Color | Lens Epoxy Color | Package | Case Style | Wavelength | Luminous Intensity/Flux | Voltage - Forward (Vf) | Color Temperature | LED Power | Brightness Group | Configuration | Packaging | Vendor |
| | | | | | | | | | | | | | | | | | | | | |

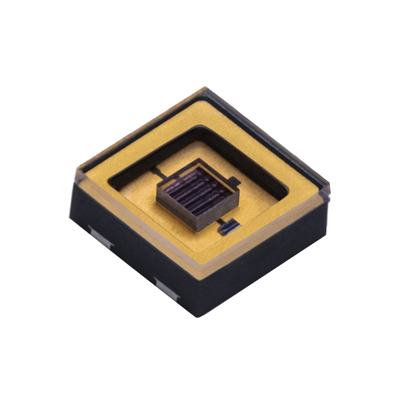

 | 1563-0004-7 | XBT-3535-UV-A130-CD270-00 | 237 | 564.20 |  | PB-Free | RoHS | UVC LED, Ultraviolet Color, Radiometric Flux 35-40mW, Wavelength 270-280nm, View Angle 130 Degrees | Ultraviolet | Water Clear | 1414(3535) | SMD-Others | 270-280nm | 35-40mW (Min-Max) | 6.5V | - | - | CD | - | TAPE & REEL | LUMINUS |
 | 1563-0006-1 | SST-10-R-B130-F630 | 822 | 30.93 | | PB-Free | RoHS | High Power LED with Peak Wavelength of 630nm, Red Color, Flux 230-270mW, Power Dissipation 5W, View Angle 130 Degrees | Red | Water Clear | 1414(3535) | SMD-Others | 615-630nm | 230-270mW (Min-Max) | 2.1V | - | 5W | F | - | TAPE & REEL | LUMINUS |
 | 1563-0007-3 | SST-10-SB-B130-M470 | 976 | 32.56 | | PB-Free | RoHS | High Power LED with Peak Wavelength of 470nm, Sky Blue Color, Flux 470-510mW, Power Dissipation 5W, View Angle 130 Degrees | Blue | Water Clear | 1414(3535) | SMD-Others | 460-480nm | 470-510mW (Min-Max) | 2.85V | - | 5W | M | - | TAPE & REEL | LUMINUS |
 | 1563-0008-5 | SST-10-G-B130-E530 | 747 | 32.56 | | PB-Free | RoHS | High Power LED with Peak Wavelength of 530nm, Green Color, Flux 190-230mW, Power Dissipation 5W, View Angle 130 Degrees | Green | Water Clear | 1414(3535) | SMD-Others | 515-540nm | 190-230mW (Min-Max) | 3.4V | - | 5W | E | - | TAPE & REEL | LUMINUS |
 | 1563-0009-7 | MP-3030-120H-30-80 | 626 | 4.36 | | PB-Free | RoHS | Mid Power LED, White, Typical Flux 36lm, 1160mW, Color Temperature (CCT) 3000K, Color Rendering Index (CRI) 80(Min), View Angle 120 Degrees | White | Yellow Diffused | 1212(3030) | SMD-Others | - | 36lm | 2.68V | 3000K | 1.16W | E1,E2 | - | TAPE & REEL | LUMINUS |
| 1563-0010-2 | MP-3030-120H-50-80 | 5,121 | 4.36 | | PB-Free | RoHS | Mid Power LED, White, Typical Flux 39.5lm, 1160mW, Color Temperature (CCT) 5000K, Color Rendering Index (CRI) 80(Min), View Angle 120 Degrees | White | Yellow Diffused | 1212(3030) | SMD-Others | - | 39.5lm | 2.68V | 5000K | 1.16W | E2,E3 | - | TAPE & REEL | LUMINUS |
 | 1563-0011-4 | SST-10-DR-B130-K660 | 485 | 39.89 | | PB-Free | RoHS | High Power LED with Peak Wavelength of 660nm, Deep Red Color, Flux 390-430mW, Power Dissipation 4W, View Angle 130 Degrees | Red | Water Clear | 1414(3535) | SMD-Others | 640-670nm | 390-430mW (Min-Max) | 2.1V | - | 4W | K | - | TAPE & REEL | LUMINUS |
 | 1563-0012-6 | SBM-40-RGBW-HC41-QE100 | 61 | 332.10 | | PB-Free | RoHS | RGBW Combination LED, High Optical Output at 3A, Red 110-165lm/624nm, Green 220-360lm/525nm, Blue 1100-1800mW/454nm, White 240-400lm | RGBW | Water Clear | 2318(5847) | SMD-Others | 621-627nm/519-531nm/449-459nm/- | 110-165lm,220-360lm,1100-1800mW,240-400lm(Min-Max) | 2.5V/3.2V/3.05V/3.05V | - | - | - | Independent | TAPE & REEL | LUMINUS |
 | 1563-0013-8 | SBM-40-RGBW-LC41-QC100 | 45 | 194.70 | | PB-Free | RoHS | RGBW Combination LED, High Optical Output at 1A, Red 45-90lm/622nm, Green 112-224lm/527nm, Blue 630-1100mW/455nm, White 140-224lm | RGBW | Water Clear | 2318(5847) | SMD-Others | 620-625nm/524-529nm/452-457nm/- | 45-90lm,112-224lm,630-1100mW,140-224lm (Min-Max) | 2.3V/3.2V/3.2V/3.2V | - | - | - | Independent | TAPE & REEL | LUMINUS |
 | 1563-0015-2 | SST-20-W30H-B120-J5302 | 9,926 | 20.81 | | PB-Free | RoHS | High Power LED, White, Flux 114-122lm, Power Dissipation 7W(Max), CCT 3000K, CRI 95(Min), View Angle 120 Degrees, Solder Pad Configuration Type B | White | Water Clear | 1414(3535) | SMD-Others | - | 114-122lm (Min-Max) | 2.71V | 3000K | 7W | J5 | - | TAPE & REEL | LUMINUS |
| 1563-0016-4 | SST-20-W40H-B120-K3402 | 4,935 | 20.81 | | PB-Free | RoHS | High Power LED, White, Flux 130-139lm, Power Dissipation 7W(Max), CCT 4000K, CRI 95(Min), View Angle 120 Degrees, Solder Pad Configuration Type B | White | Water Clear | 1414(3535) | SMD-Others | - | 130-139lm (Min-Max) | 2.71V | 4000K | 7W | K3 | - | TAPE & REEL | LUMINUS |
 | 1563-0025-5 | CIM-9-35-90-36-AC40-F5-3 | 0 | 116.10 | | PB-Free | RoHS | Chip on Board (COB) Arrays LED, White, Output Flux 900lm(Calculated Typ.), 6.1W(Typ.), CCT 3500K, CRI 90(Min.), View Angle 120 Degrees | White | Yellow Diffused | AC40,13.5mm x 13.5mm | SMD-Others | - | 900lm | 33.5V | 3500K | 6.1W | - | - | TRAY | LUMINUS |
 | 1563-0030-8 | MP-3030-210H-65-80 | 44,155 | 2.10 | | PB-Free | RoHS | Mid Power LED, White, Typical Flux 148lm, 1536mW, Color Temperature (CCT) 6500K, Color Rendering Index (CRI) 80(Min), View Angle 110 Degrees | White | Yellow Diffused | 1212(3030) | SMD-Others | - | 148lm | 6.0V | 6500K | 1.536W | 2G,2H | - | TAPE & REEL | LUMINUS |
 | 1563-0031-1 | CXM-18-65-80-36-TC60-F7-3 | 299 | 172.80 | | PB-Free | RoHS | Chip on Board (COB) Arrays LED, White, Output Flux 5280lm(Calculated Typ.), 26.5W(Typ.), CCT 6500K, CRI 80(Min.), View Angle 120 Degrees | White | Yellow Diffused | TC60,28mm x 28mm | SMD-Others | - | 5280lm | 33V | 6500K | 26.5W | - | - | BOX | LUMINUS |
 | 1563-0033-4 | CHM-9-30-90-36-AA10-F3-3 | 0 | 59.22 | | PB-Free | RoHS | Chip on Board (COB) Arrays LED, White, Output Flux 1500lm(Calculated Typ.), 12.8W(Typ.), CCT 3000K, CRI 90(Min.), View Angle 120 Degrees | White | Yellow Diffused | AA10,15mm x 15mm | SMD-Others | - | 1500lm | 35.5V | 3000K | 12.8W | - | - | TRAY | LUMINUS |
