| Picture | ES Part No. | Part No | Stock | Price | Datasheet | Pb Free | RoHS | Description | Series | Model | Display Size | Resolution (Pixels) | Color Depth | Number of Serial COM Ports | Number of Ethernet Ports | Ingress Protection | Supply Voltage | Panel Cutout (W x H) | Vendor |
| | | | | | | | | | | | | | | | | | | |
 | 0290-0203-3 | DOP-107WV | 23 | 7,583.80 |  | | RoHS | HMI, 7-Inch TFT LCD, 800 x 480 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 512MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100 | Advanced HMI | 7 Inch | 800 x 480 | 65K | 2 | 1 | IP65 | 24 VDC ±15% | 186.8 x 126.8 mm | DELTA |

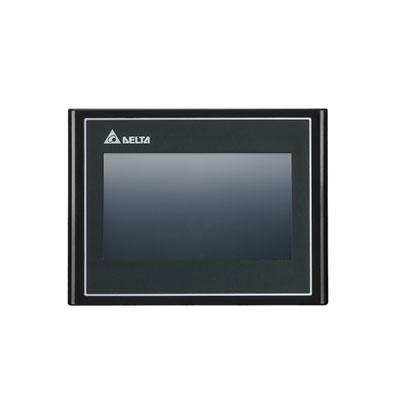

 | 0290-0204-5 | DOP-103BQ | 5 | 4,290.30 | | PB-Free | RoHS | HMI, 4.3-Inch TFT LCD, 480 x 272 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485 | DOP-100 | Basic HMI | 4.3 Inch | 480 x 272 | 65K | 1 | - | IP65 | 24 VDC ±15% | 118.8 x 92.8 mm | DELTA |

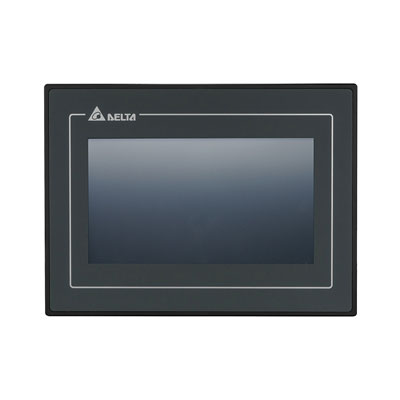

 | 0290-0205-7 | DOP-107BV | 0 | 6,160.00 | | | RoHS | HMI, 7-Inch TFT LCD, 800 x 480 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485 | DOP-100 | Basic HMI | 7 Inch | 800 x 480 | 65K | 1 | - | IP65 | 24 VDC ±15% | 196.9 x 142.9 mm | DELTA |

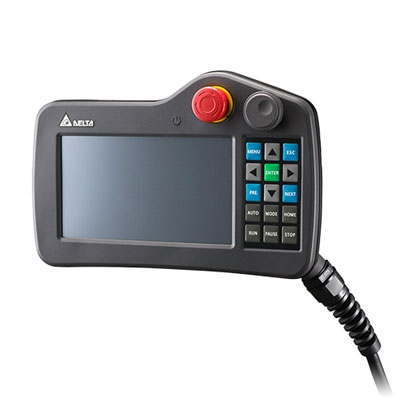

 | 0290-0206-9 | DOP-H07E465 | 1 | 30,629.90 | | | RoHS | HMI, 7-inch TFT LCD, 800 x 480 Pixels, MCU 400MHz, ROM 128MB, RAM 64 MB, USB, Ethernet Type | DOP-H | Handheld HMI | 7 Inch | 800 x 480 | 65K | - | 1 | IP55 | 24 VDC ±15% | - | DELTA |

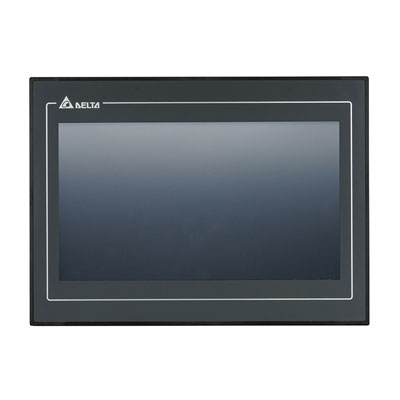

 | 0290-0207-1 | DOP-110CS | 6 | 8,530.20 | | | RoHS | HMI, 10.1-Inch TFT LCD, 1024x600 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485 | DOP-100 | Standard HMI | 10.1 lnch | 1024 x 600 | 65K | 2 | - | IP65 | 24 VDC ±15% | 261.3 x 189.3 mm | DELTA |

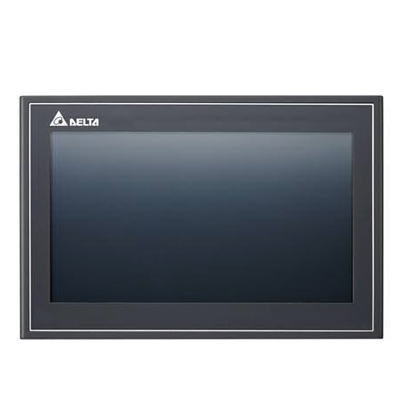

 | 0290-0234-4 | DOP-110WS | 0 | 11,150.30 | | | RoHS | HMI, 10.1-inch TFT LCD, 1024x600 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 512MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100 | Advanced HMI | 10.1 lnch | 1024 x 600 | 65K | 2 | 1 | IP65 | 24 VDC ±15% | 255 x 170 mm | DELTA |

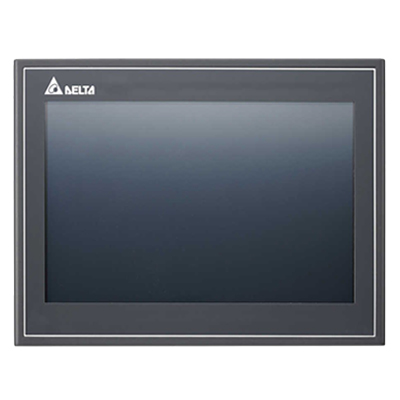

 | 0290-0313-1 | DOP-112WX | 4 | 24,339.70 | | PB-Free | RoHS | HMI, 12-Inch TFT LCD, 1024 x 768 Pixels, Cortex-A7 Dual Core 1GHz, ROM 8GB, RAM DDR3 1000MHz 1GB, USB, RS-232/RS-422/RS-485, 2 x Ethernet Ports | DOP-100 | Advanced HMI | 12 lnch | 1024 x 768 | 16.7M | 2 | 2 | IP65 | 24 VDC ±15% | 302.7 x 228.7 mm | DELTA |

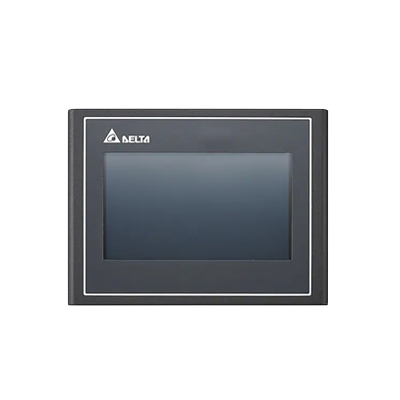

 | 0290-0314-2 | DOP-103WQ | 13 | 5,667.20 | | PB-Free | RoHS | HMI, 4.3-Inch TFT LCD, 480 x 272 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 512MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100 | Advanced HMI | 4.3 Inch | 480 x 272 | 65K | 1 | 1 | IP65 | 24 VDC ±15% | 118.8 x 92.8 mm | DELTA |
 | 0290-0471-8 | DOP-107EV | 25 | 6,934.90 | | PB-Free | RoHS | HMI, 7-Inch TFT LCD, 800 x 480 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100 | Standard HMI | 7 Inch | 800 x 480 | 65K | 2 | 1 | IP65 | 24 VDC ±15% | 196.9 x 142.9 mm | DELTA |

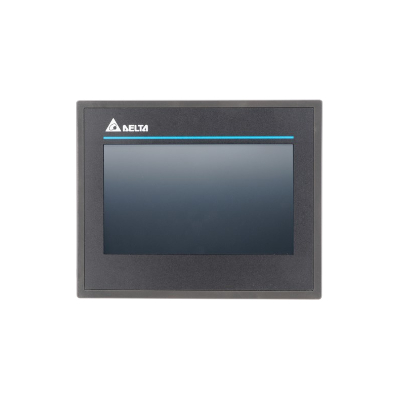

 | 0290-0548-7 | DOP-103DQ | 10 | 4,470.20 | | PB-Free | RoHS | HMI, 4.3-Inch TFT LCD, 480 x 272 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 512MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100 | Basic HMI | 4.3 Inch | 480 x 272 | 65K | 1 | 1 | IP65 | 24 VDC ±15% | 118.8 x 92.8 mm | DELTA |

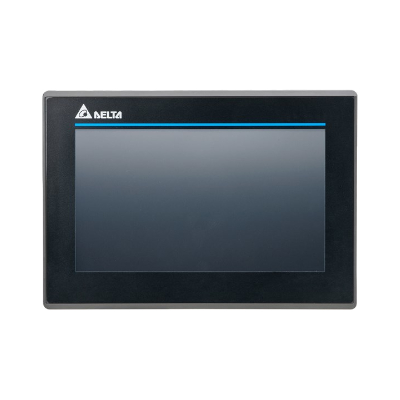

 | 0290-0549-9 | DOP-107PV | 15 | 6,643.70 | | PB-Free | RoHS | HMI, 7-inch TFT LCD, 800 x 480 Pixels, Cortex-A8 Single Core 800MHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100 | Standard HMI | 7 Inch | 800 x 480 | 16.7M | 2 | 1 | IP65 | 24 VDC ±15% | 186.8 x 126.8 mm | DELTA |
 | 0290-0649-3 | DOP-107L1-01 | 0 | 4,298.70 | | PB-Free | RoHS | HMI, 7-inch TFT LCD, 1024 x 600 Pixels, Cortex-A7 Dual Core 1.2GHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100L | Standard HMI | 7 Inch | 1024 x 600 | 16.7M | 1 | 1 | IP66 | 24 VDC ±15% | 196.9 x 142.9 mm | DELTA |
| 0290-0650-8 | DOP-107L2-01 | 0 | 4,298.70 | | PB-Free | RoHS | HMI, 7-inch TFT LCD, 1024 x 600 Pixels, Cortex-A7 Dual Core 1.2GHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100L | Standard HMI | 7 Inch | 1024 x 600 | 16.7M | 1 | 1 | IP66 | 24 VDC ±15% | 192 x 138 mm | DELTA |
 | 0290-0651-1 | DOP-110L1-01 | 0 | 6,048.70 | | PB-Free | RoHS | HMI, 10.1-inch TFT LCD, 1024x600 Pixels, Cortex-A7 Dual Core 1.2GHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100L | Standard HMI | 10.1 lnch | 1024 x 600 | 16.7M | 1 | 1 | IP66 | 24 VDC ±15% | 261.3 x 189.3 mm | DELTA |
| 0290-0652-2 | DOP-110L2-01 | 0 | 6,048.70 | | PB-Free | RoHS | HMI, 10.1-inch TFT LCD, 1024x600 Pixels, Cortex-A7 Dual Core 1.2GHz CPU, ROM 256MB, RAM 256MB, USB, RS-232/RS-422/RS-485, 1 x Ethernet Port | DOP-100L | Standard HMI | 10.1 lnch | 1024 x 600 | 16.7M | 1 | 1 | IP66 | 24 VDC ±15% | 260 x 202 mm | DELTA |
